Test points PN25
Features & Benefits
- Excellent sealing performance and wear resistance
- Red and blue cap retainers for upstream and downstream port identification

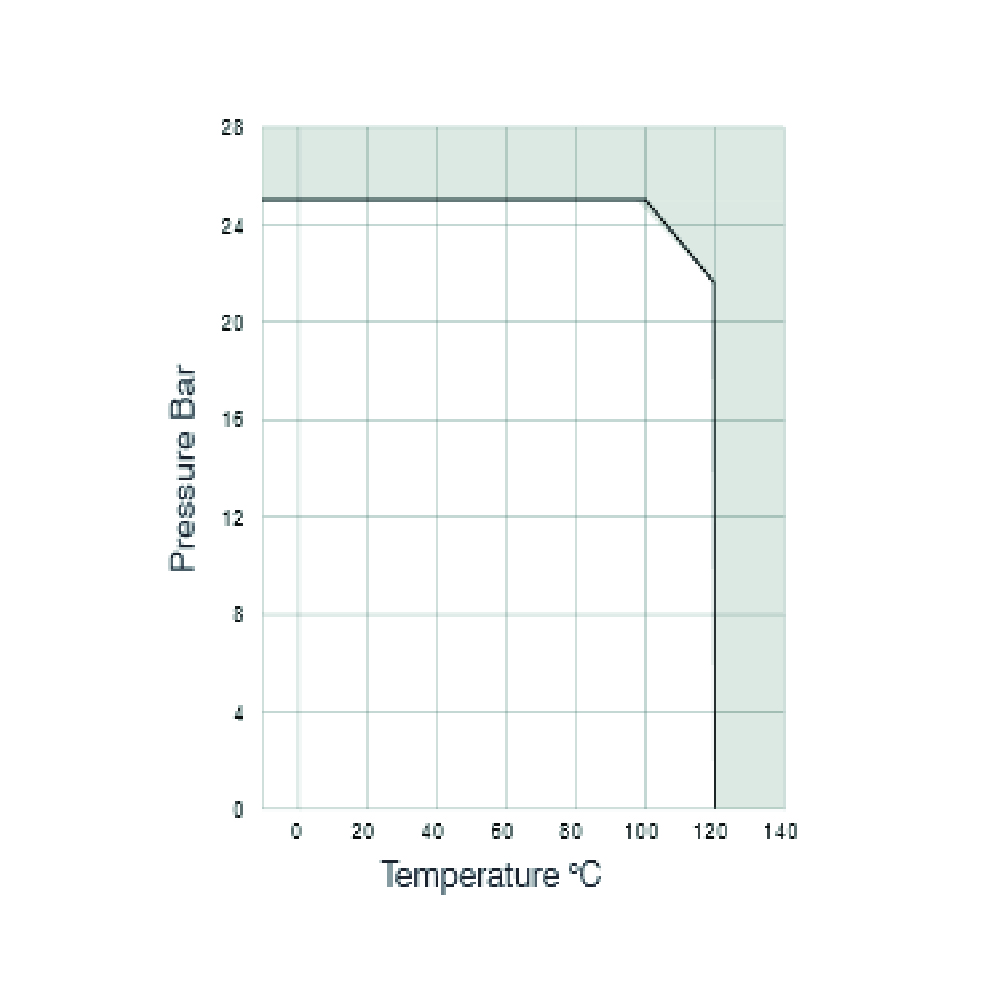

Pressure/Temperature Rating
- 25 Bar from -10°C to 100°C
- 21.8 bar at 120°C
Specifications
- Dezincification-resistant body
- Elastomeric core providing excellent sealing
- ¼" Taper threaded to BS EN 10226-2 (150-7) formerly BS21
- NPT threading available on request

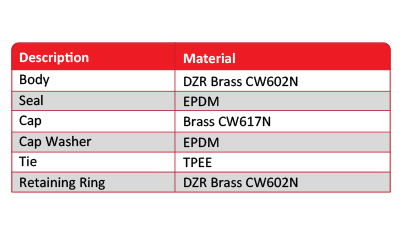

Material Specification

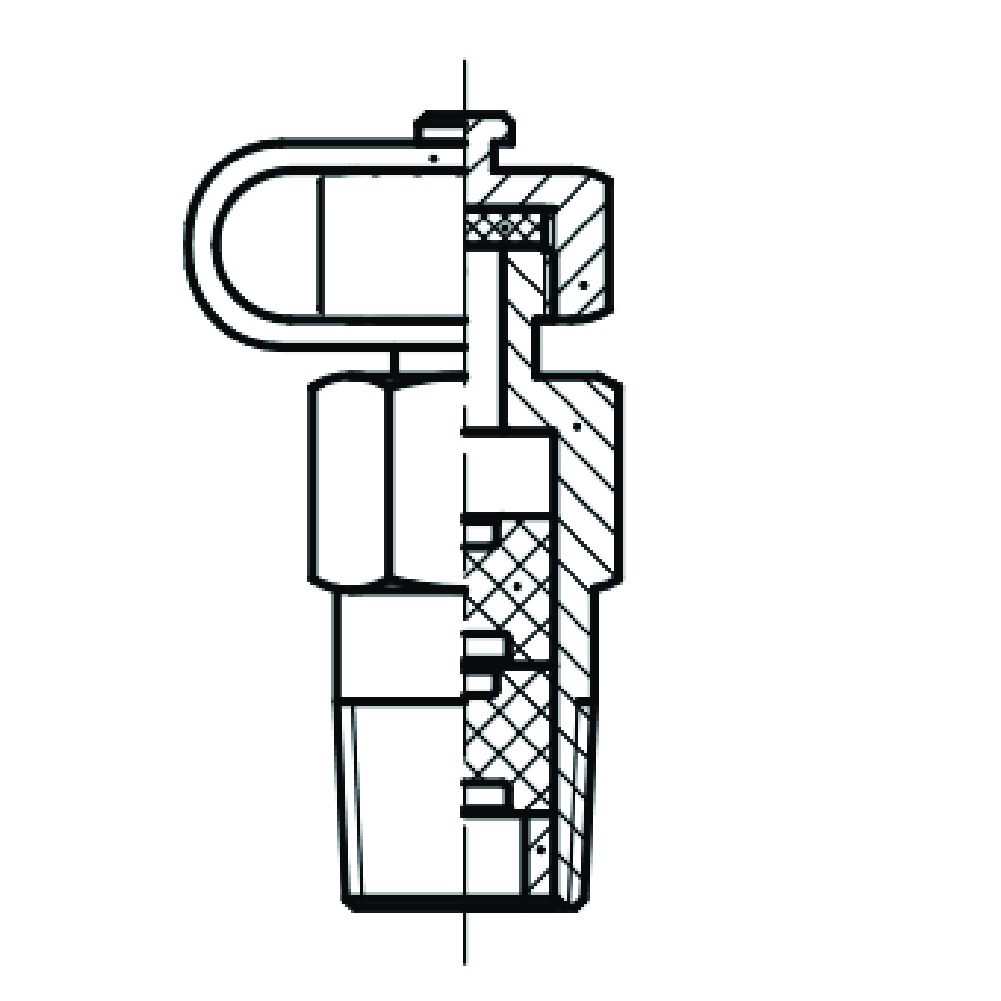

Dimensional Drawings
