Strainer: Y type PN20

Features & Benefits
  • High-qualityty bronze body
  • Asbestos-free gasket

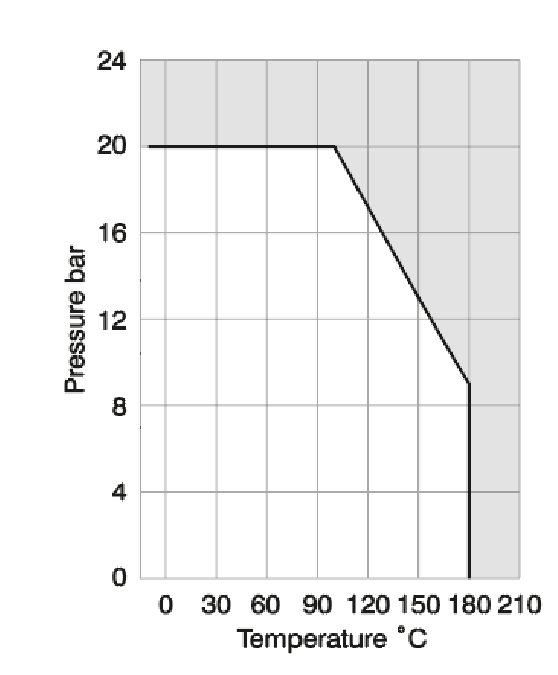

Pressure/Temperature Rating
  • 20 Bar from -10°C to 100°C
  • 9 bar at 180°C
Specifications
  • Bronze body
  • Stainless steel type 304 perforated screen
  • Threaded cap
  • NPT threading available on request
  • Other screen materials and perforation sizes available on request
  • Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
Test Pressure
  • Shell: 30 bar

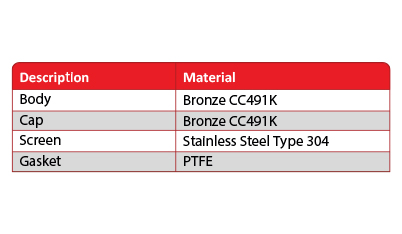

Material Specification

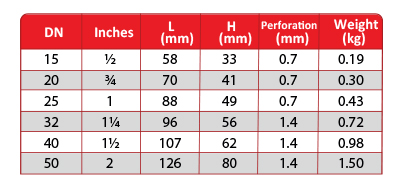

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

Dimensional Drawings
