Strainer: Y type PN16

Features & Benefits
  • Stainless steel perforated screen
  • Cap tapped and plugged for drain
  • WRAS approved for use with potable water
Pressure/Temperature Rating
  • 25 Bar from -10°C to 100°C
Specifications
  • Other screen materials and perforation sizes available on request
  • Bolted cover
  • Cap tapped and plugged for drain
  • Face to face dimensions to BS EN 558-1 basic series 1
  • Flanged to BS/EN 1092-2 PN16 formerly BS 4504
  • ANSI flange drilling available on request
  • Can be supplied with 2 test points upon request
Test Pressure
  • Shell: 37.5 bar

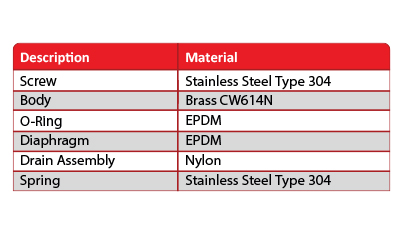

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

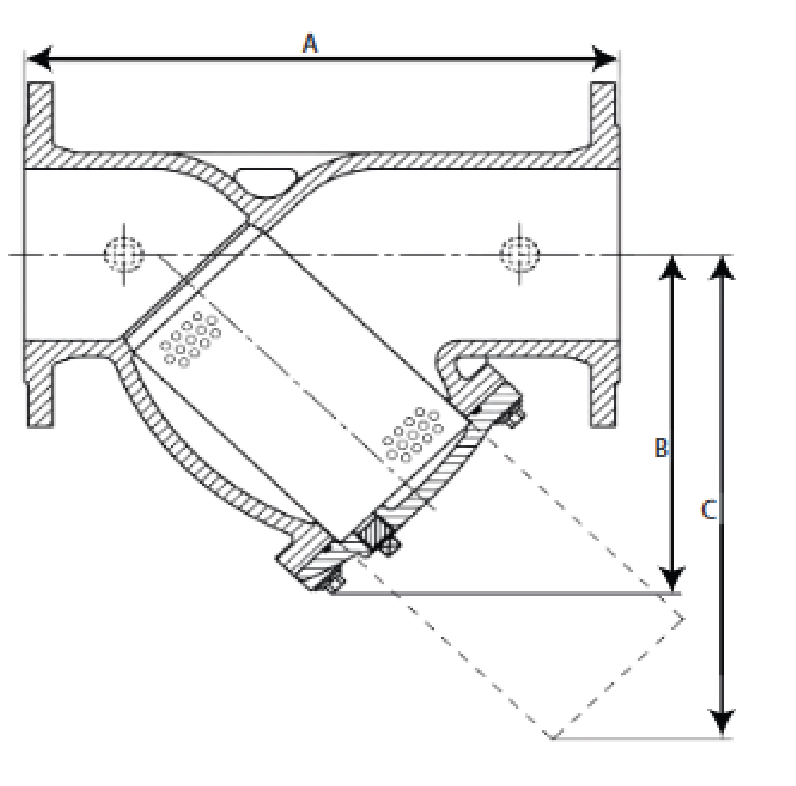

Dimensional Drawings
