Other Valves

Features & Benefits

• High-quality bronze body
• Direct acting type
• WRAS approved for use with potable water

Pressure/Temperature Rating

• 20 Bar from -10°C to 100°C

Specifications

• Integral stainless steel fine filter
• Provision for connecting pressure gauges
• NPT threading available on request
• Maximum inlet pressure of 20 bar
• Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
• Adjustable outlet pressure: DN15 to DN25: 1 to 4 bar DN32 to DN100: 1 to 5 bar

Test Pressure

• Shell: 30 bar

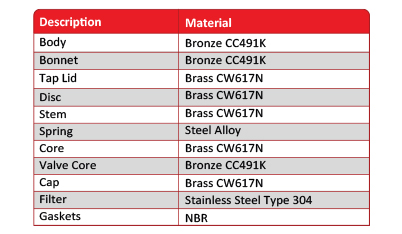

Material Specification

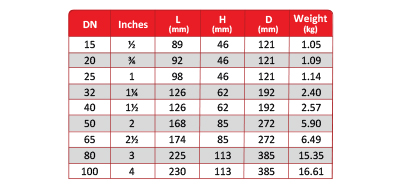

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

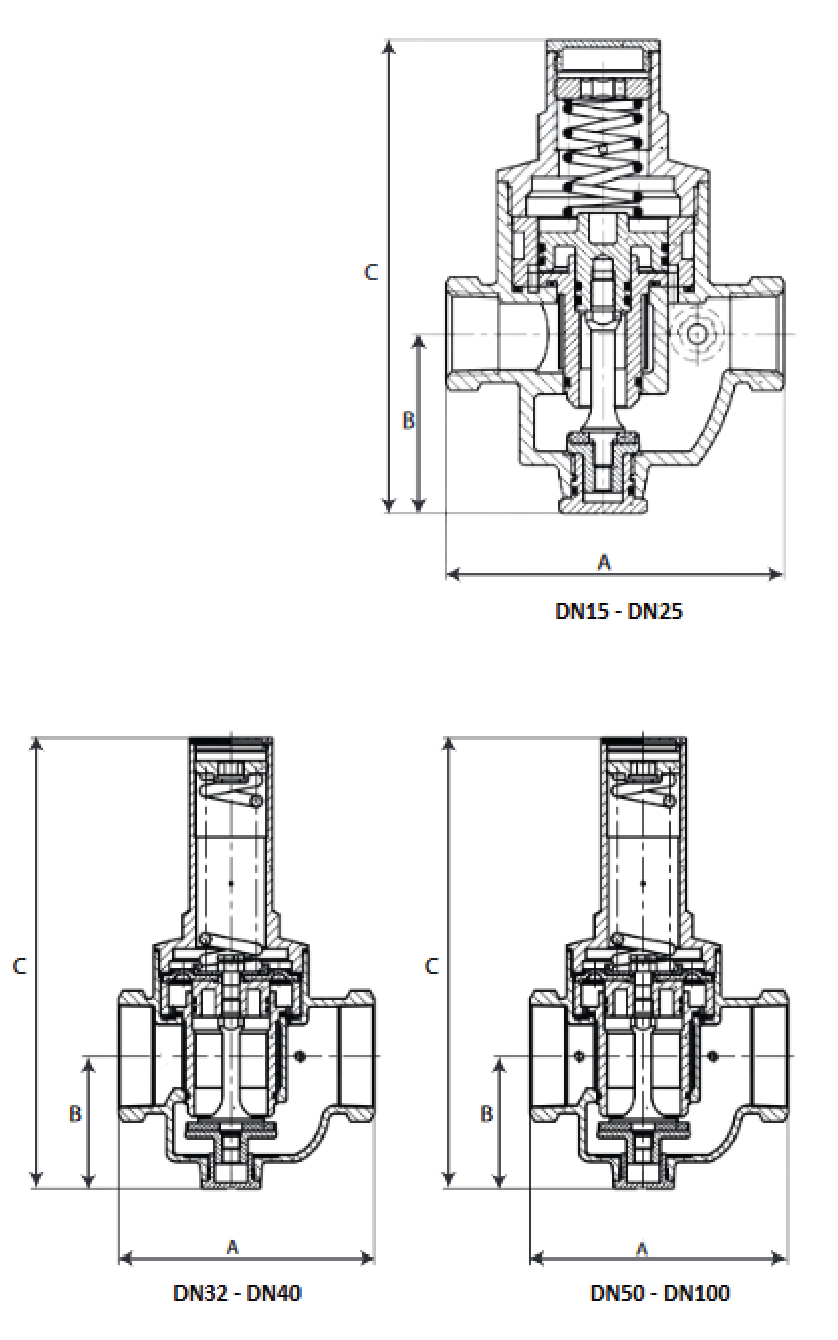

Dimensional Drawings
