Balancing Valves

Features & Benefits

• Precise and accurate measurement
• Equipped with self-sealing measuring points (test points)
• Dezincification-resistant brass body

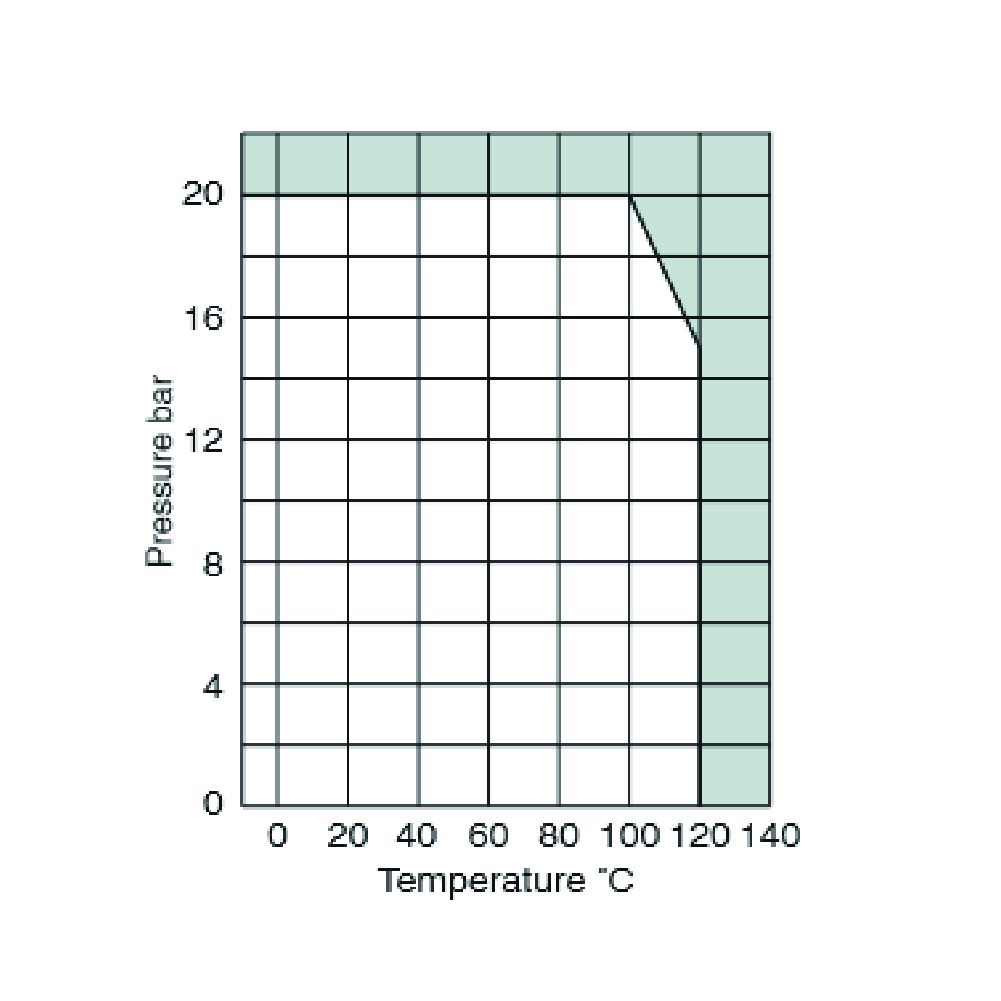

Pressure/Temperature Rating

• 20 Bar from -10°C to 100°C
• 15 bar at 120°C

Specifications

• Designed to BS 7350
• Equipped with self-sealing measuring points
• NPT threading available on request
• Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21

Test Pressure

• Shell: 30 bar

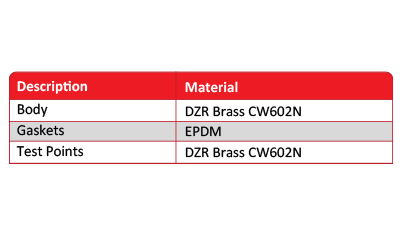

Material Specification

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

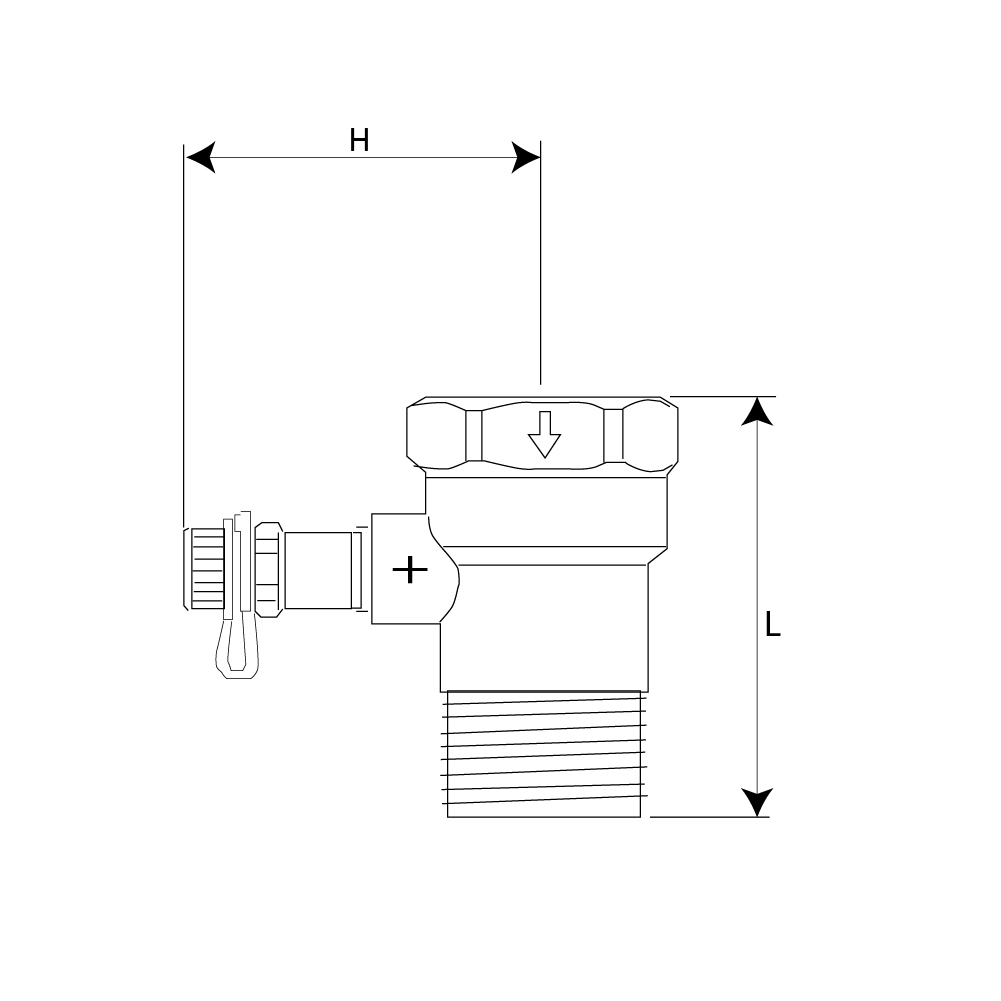

Dimensional Drawings
