Balancing Valves

Features & Benefits

• Compact wafer design
• Accurate flow measurement
• Supplied with test points and extension sleeve

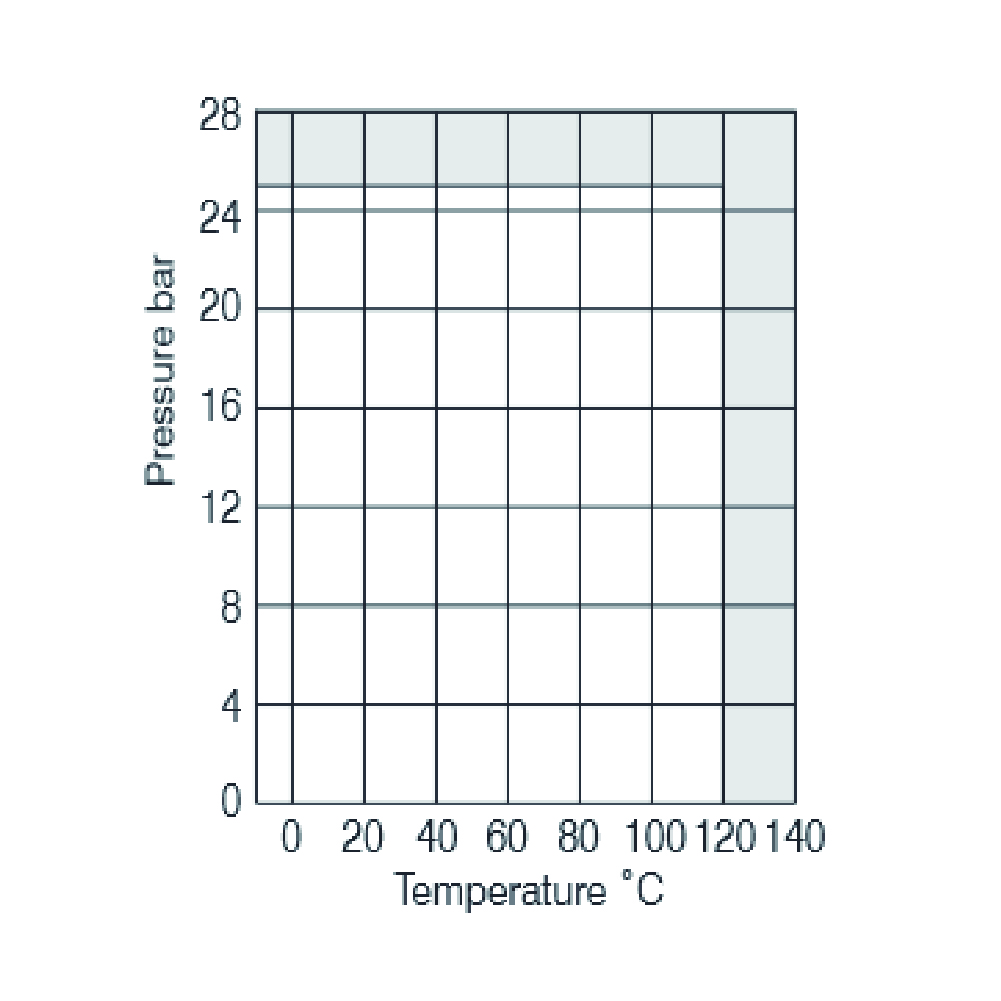

Pressure/Temperature Rating

• 25 Bar from -10°C to 120°C

Specifications

• Conforms to BS 7350
• Complete with extensions and test points (Fig. FLTP)
• Other flange standards available on request
• Suitable for BS/ EN 1092 PN16 flanges

Test Pressure

• Shell: 37.5 bar

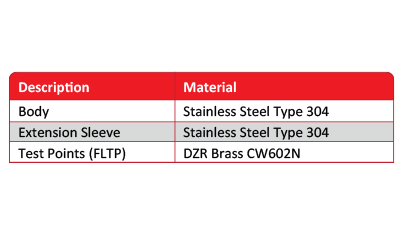

Material Specification

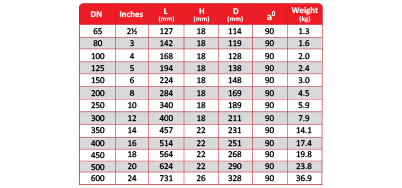

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

Dimensional Drawings
