Balancing Valves

Metering station: Wafer pattern PN16

Features & Benefits
  • Compact wafer design
  • Accurate flow measurement
  • Supplied with test points and extension sleeve

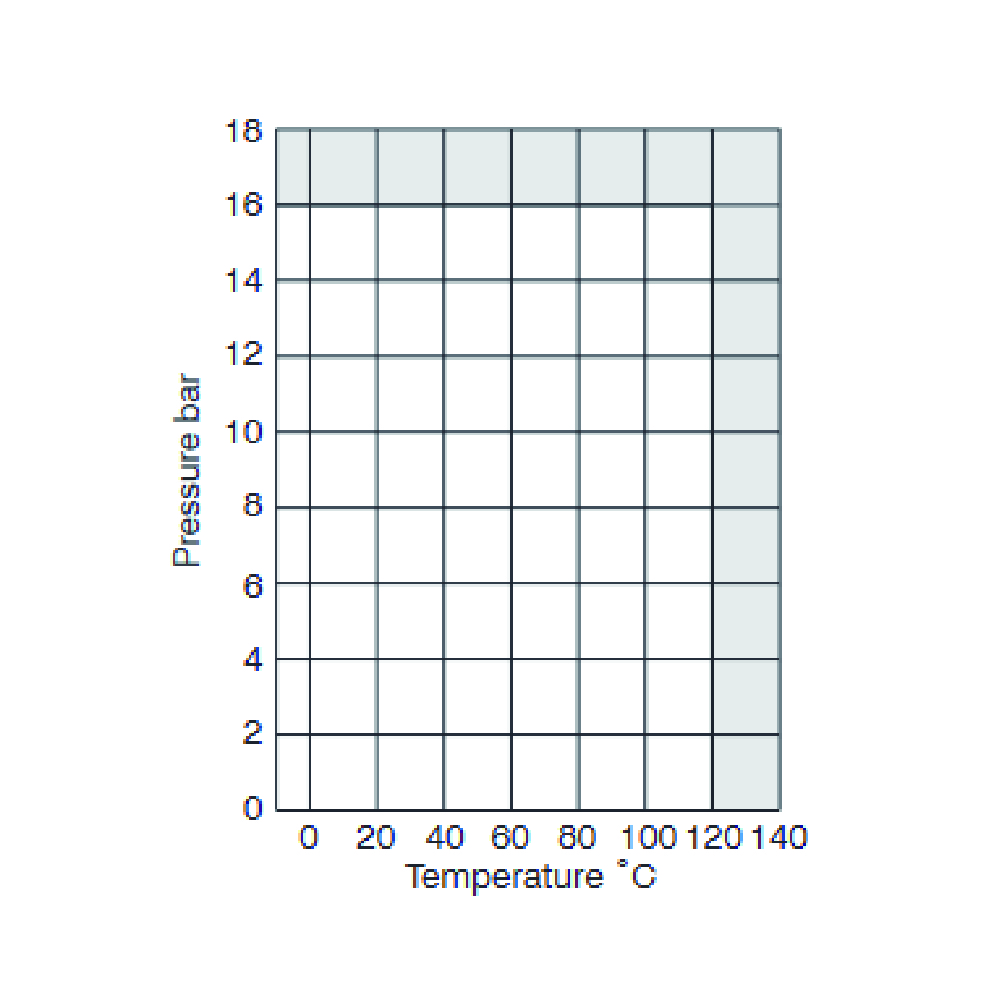

Pressure/Temperature Rating
  • 16 Bar from -10°C to 120°C
Specifications
  • Conforms to BS 7350
  • Other flange standards available on request
  • Suitable for BS/ EN 1092 PN16 flanges
  • Complete with extensions and test points
Test Pressure
  • Shell: 24 bar
Material Specification

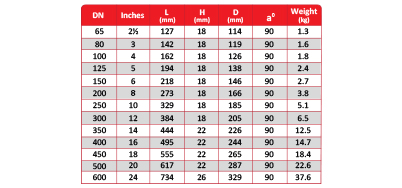

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

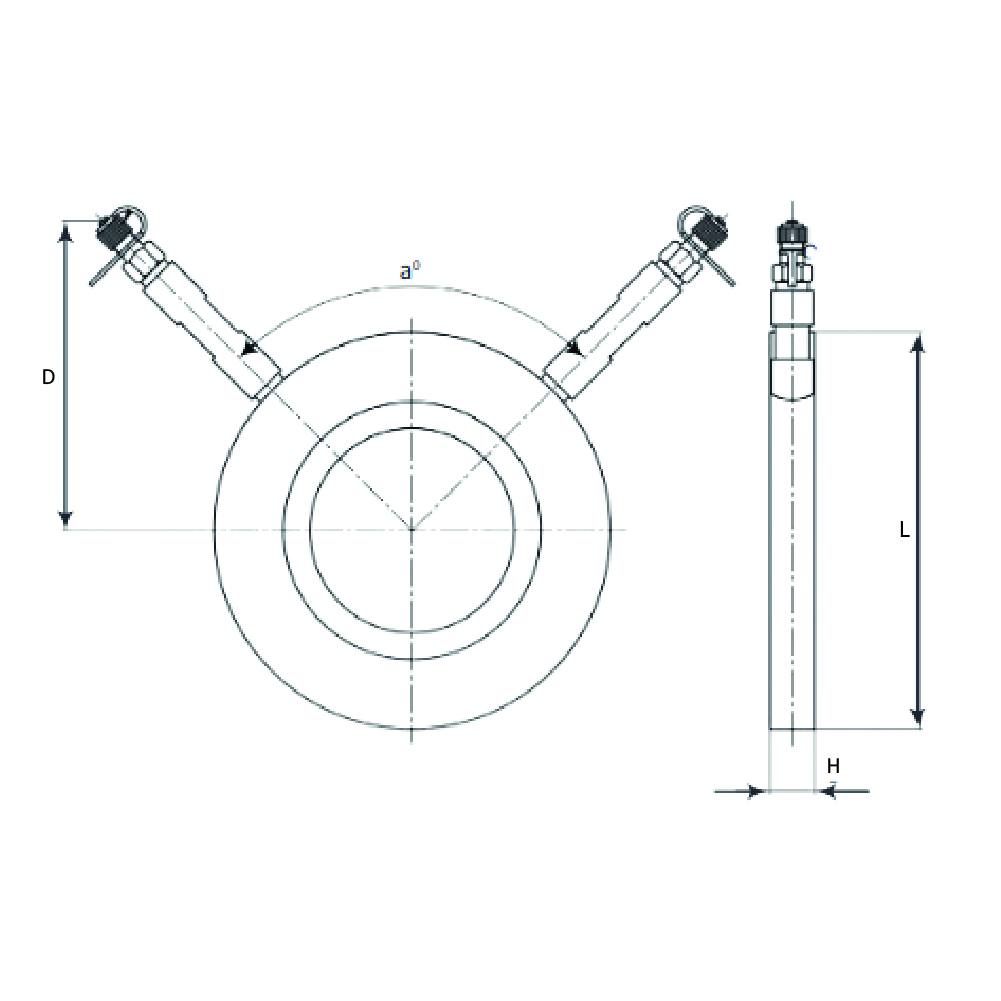

Dimensional Drawings
