Balancing Valves

Globe valve PN16

Features & Benefits
  • Bronze body of exceptional quality
  • Rising stem with threaded bonne

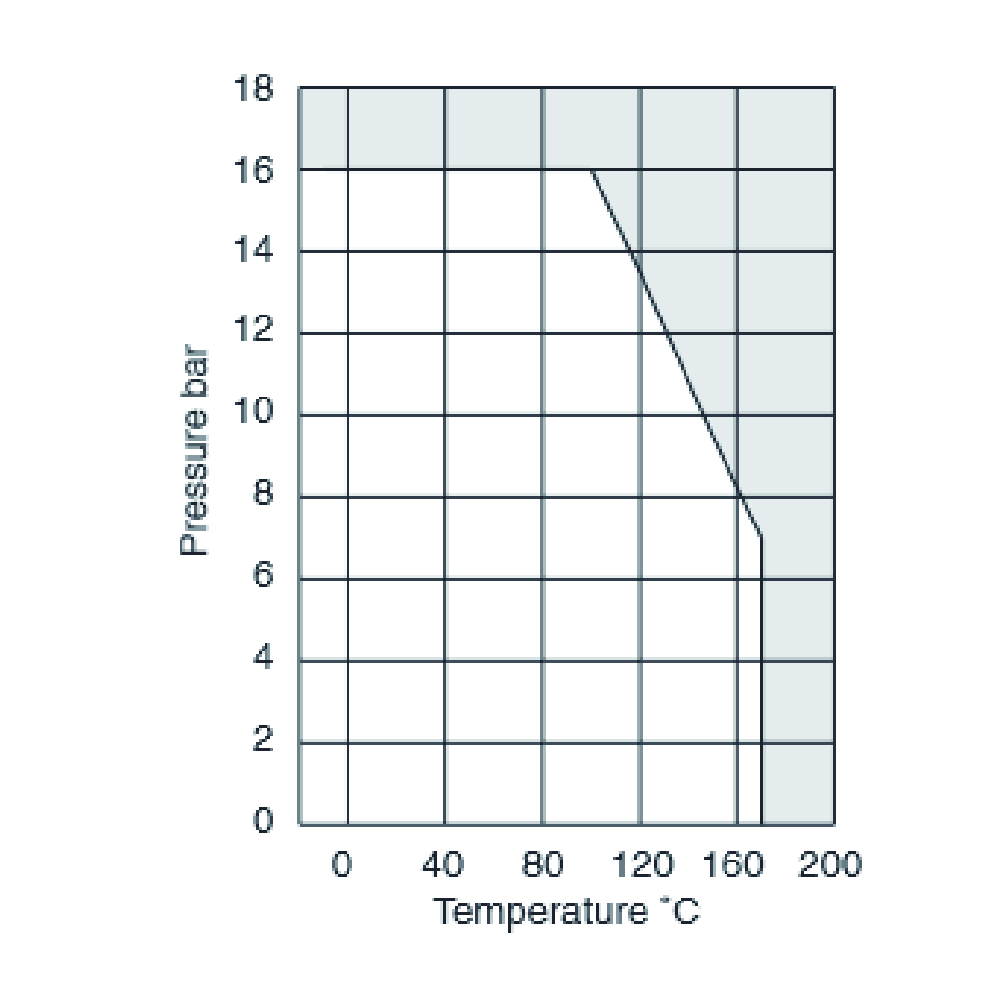

Pressure/Temperature Rating
  • 16 Bar from -10°C to 100°C
  • 7 Bar at 170°C
Specifications
  • NPT threading available on request
  • Designed to BS 5154
  • Threaded bonnet
  • Rising Stem
  • Taper threaded to BS/ EN 10226-2 (ISO-7) formerly BS 21
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

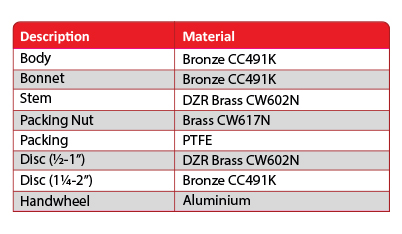

Material Specification

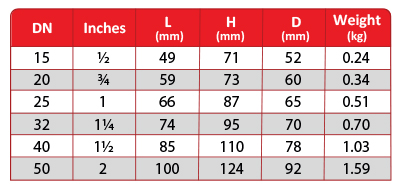

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

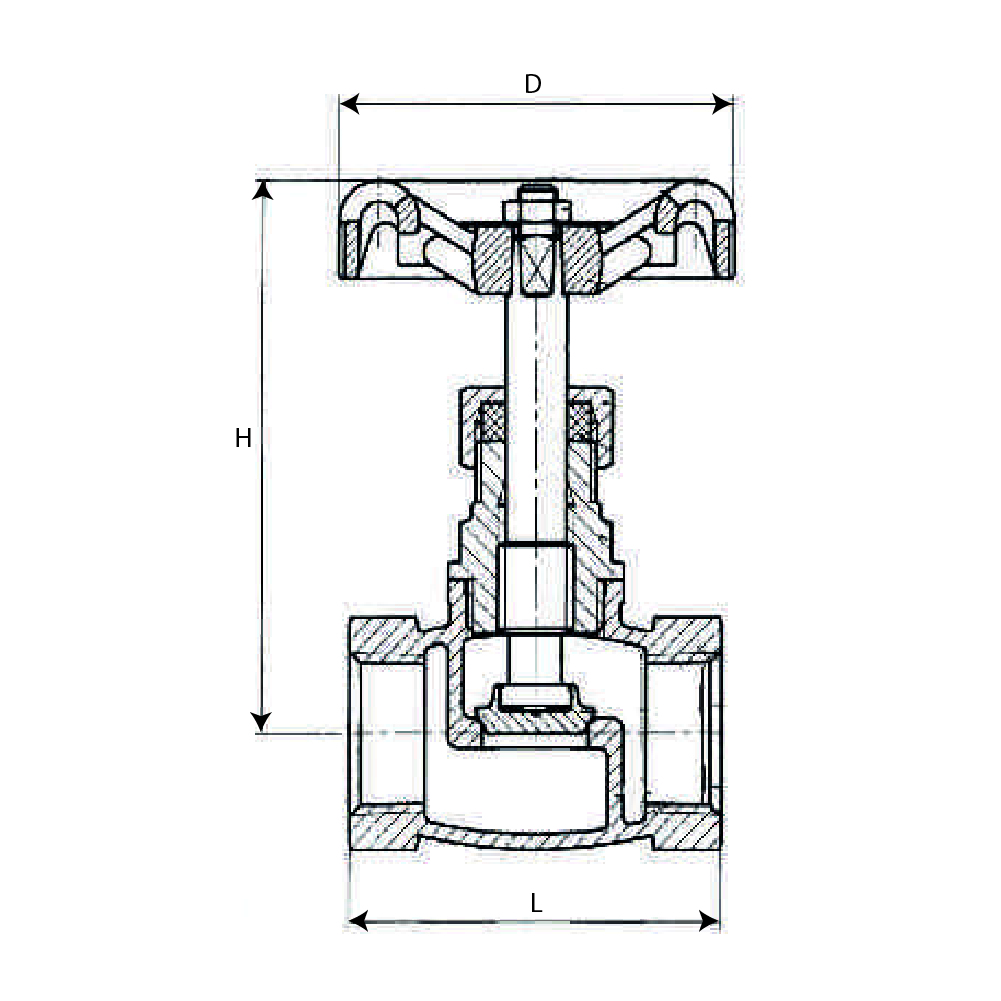

Dimensional Drawings
