Globe valve PN-16

Features & Benefits
  • Outside screw pattern with rising stem
  • Bronze mounted

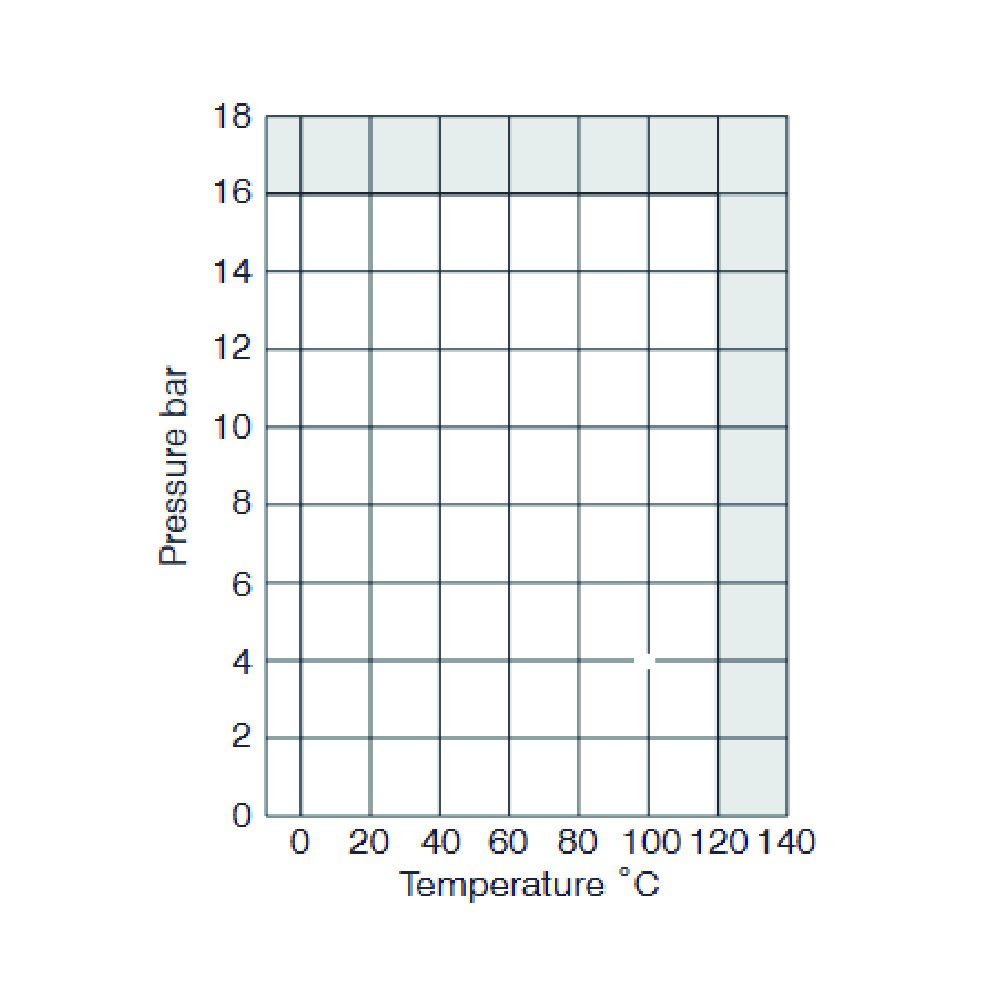

Pressure/Temperature Rating
  • 16 Bar from -10°C to 100°C
  • 7 Bar at 170°C
Specifications
  • Designed to BS EN 13789 formerly BS 5152
  • Outside screw pattern with rising stem
  • Bolted bonnet
  • Face to face dimensions to BS EN 558-1 basic series 10
  • Flanged to BS EN 1092-2 PNI6 formerly BS 4504
  • ANSI flange drilling available on request
  • Bronze trim
  • Handwheel operated
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

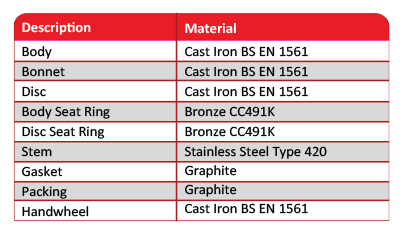

Material Specification

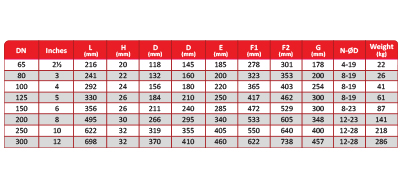

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

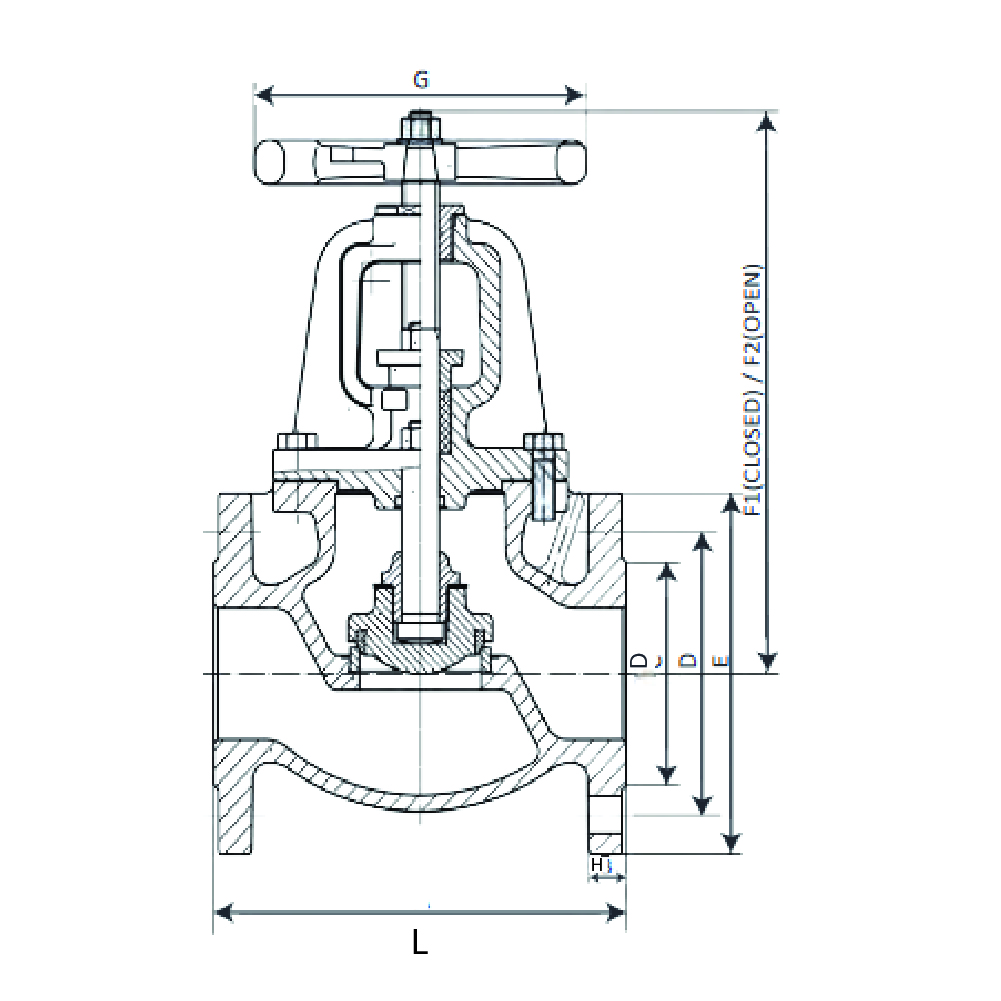

Dimensional Drawings
