Gate Valves

Gate valve: Rising stem PN20

Features & Benefits
  • High – quality bronze body
  • Inside screw pattern with rising stem

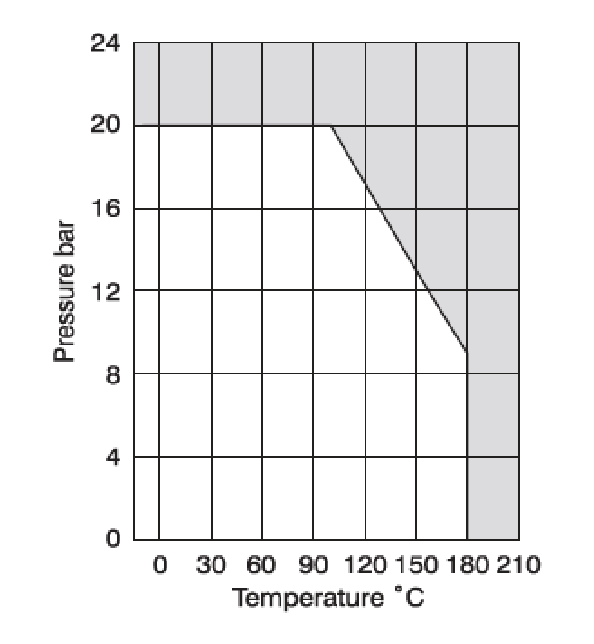

Pressure/Temperature Rating
  • 20 bar from -10°C to 100°C
Specifications
  • BS/EN 12288:2010 Series B design BS 5154 was the previous designation.
  • With a rising stem inside screw pattern.
  • Bonnet with threads
  • Wedge made of a single piece
  • BS/EN 10226-2 taper threaded (BS21/ISO-7)
  • NPT threading available on request
Test Pressure
  • Shell: 30 bar
  • Seat: 22 bar

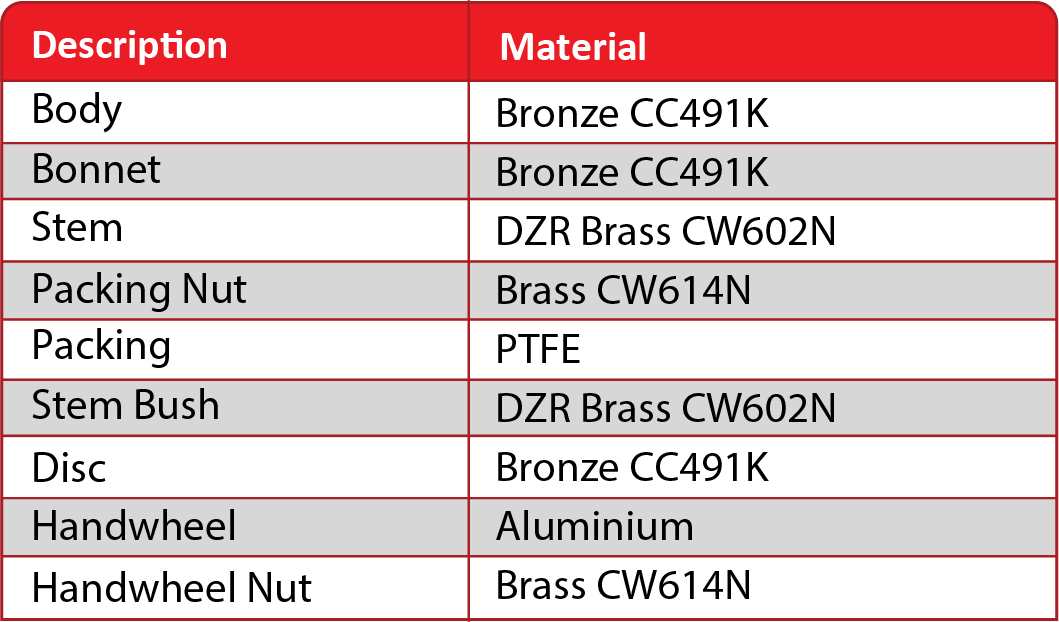

Material Specification

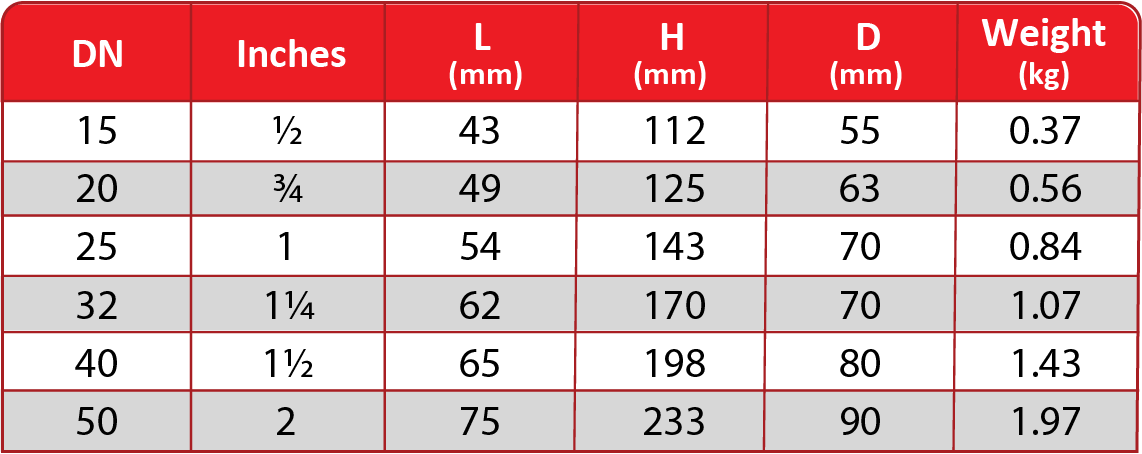

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

Dimensional Drawings
