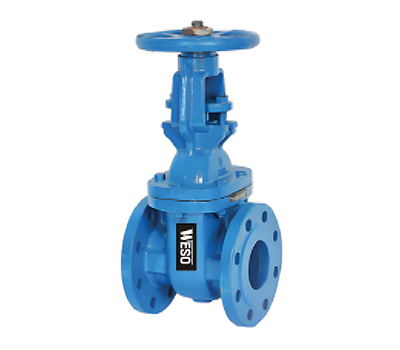

Gate Valves

Features & Benefits

• Bronze trim
• Cast iron body with flanged ends
• Outside screw pattern with rising stem

Pressure/Temperature Rating

• 16 Bar from -10°C to 120°C

Specifications

• Outside screw
• Rising stem
• Bolted Bonnet
• Single piece wedge
• Bronze trim
• Face-to-face dimensionsto BS EN 558-1 basic series 3
• Flanged to BS EN 1092-2 PN16 formerly BS 4504
• ANSI flange drilling available on request
• Designed to BS/EN 1171 formerly BS 5150

Test Pressure

• Shell: 24 bar
• Seat: 17.6 bar

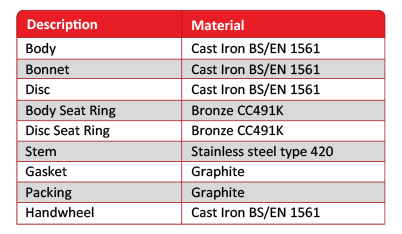

Material Specification

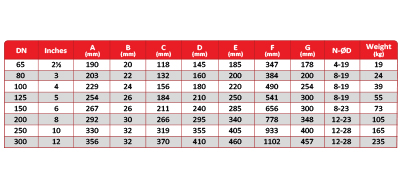

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

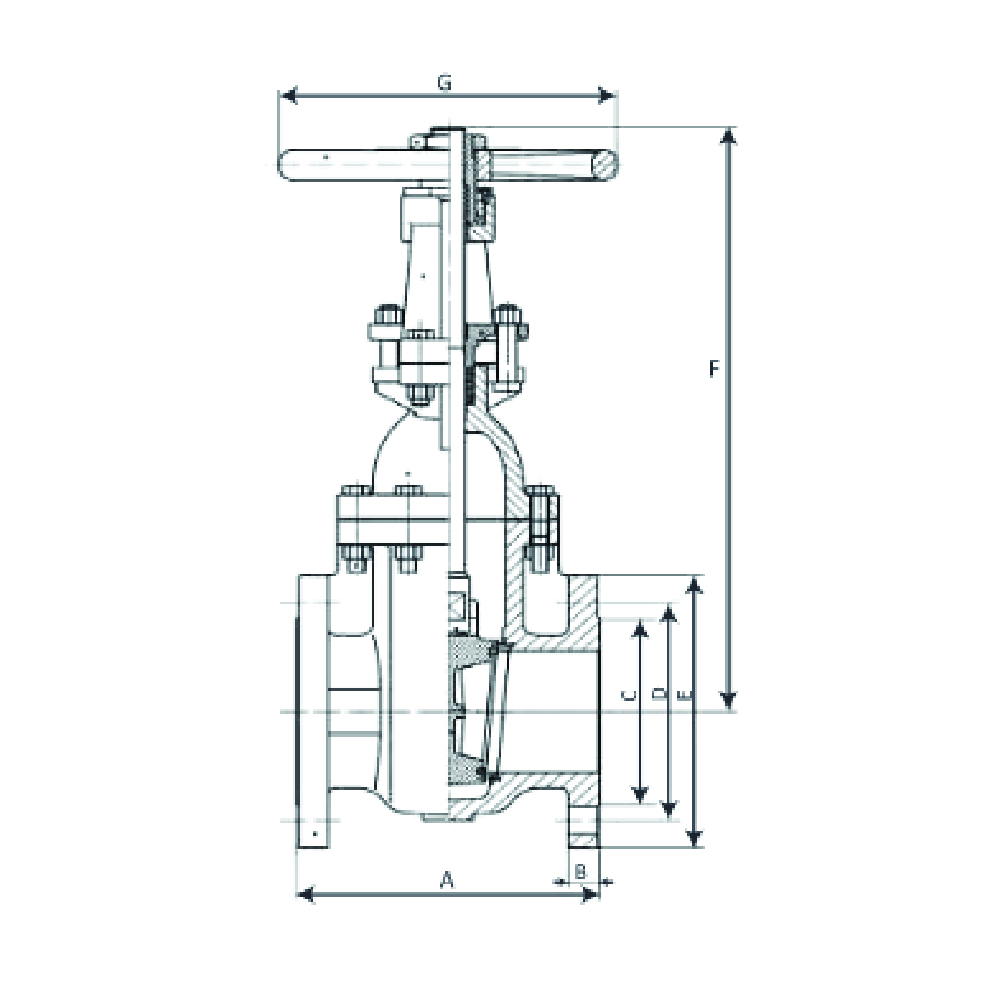

Dimensional Drawings
