Gate Valves

Gate valve: Resilient seated PN16

Features & Benefits
  • Resilient seated
  • Inside screw pattern with non-rising stem

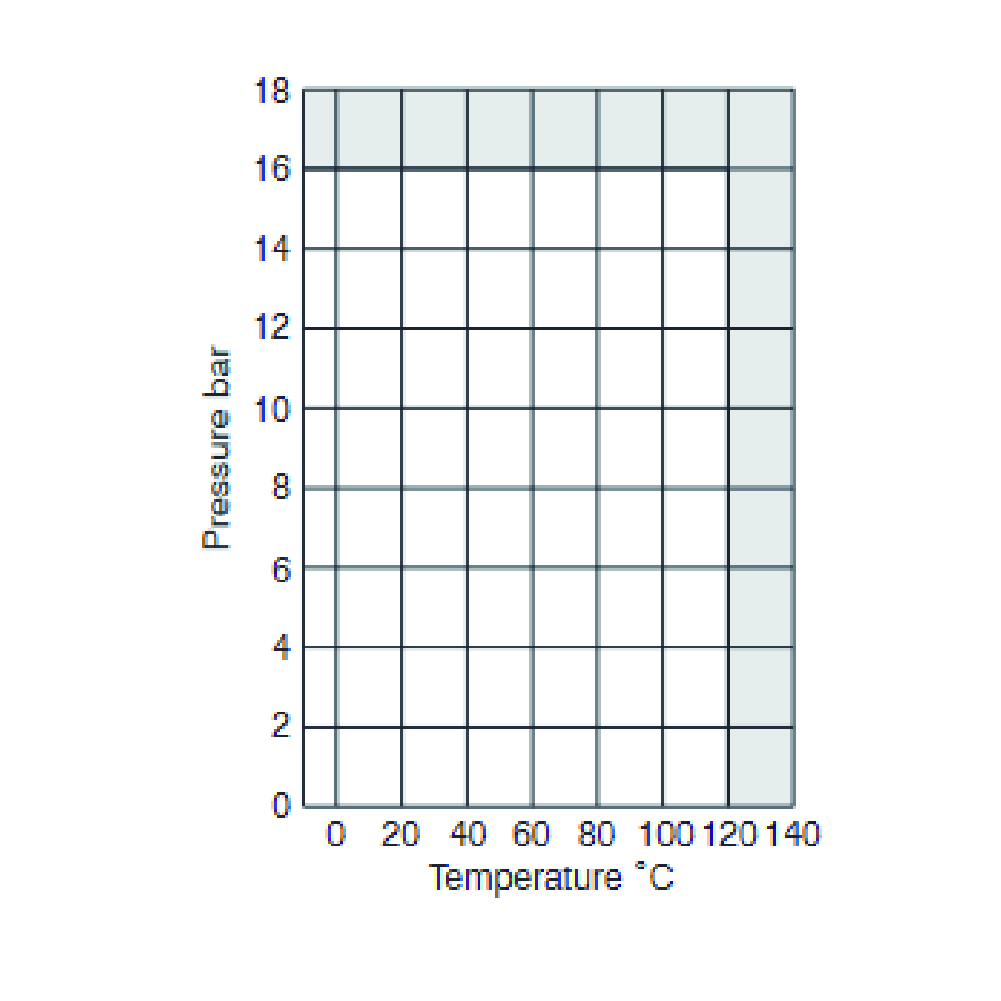

Pressure/Temperature Rating
  • 16 Bar from -10°C to 120°C
Specifications
  • Designed to BS 5163
  • Inside screw pattern with non-rising stem
  • Bolted bonnet
  • Ductile iron with EPDM vulcanized wedge
  • Face to face dimensions to BS/EN 558-1 basic series 3
  • Flanged to BS/EN 1092-2 PN16 formerly BS 4504
  • ANSI flange drilling available on request
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

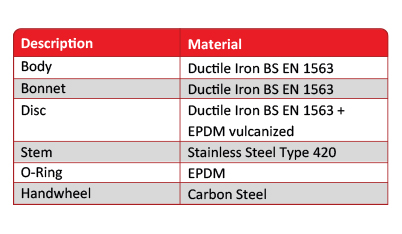

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

Dimensional Drawings
