Gate valve: Non-rising stem PN20

Features & Benefits
  • High quality bronze body
  • Inside screw pattern with non-rising stem
  • Compact design
  • WRAS approved for use with potable water
Pressure/Temperature Rating
  • 20 Bar from -10°C to 100°C
  • 9 Bar at 180°C
Specifications
  • Designed to BS/EN 12288:2010 Series B formerly BS 5154
  • WRAS approved product
  • Inside screw pattern with non-rising stem
  • Threaded bonnet
  • One-piece wedge
  • Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
  • NPT threading available on request
Test Pressure
  • Shell: 30 bar
  • Seat: 22 bar
Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

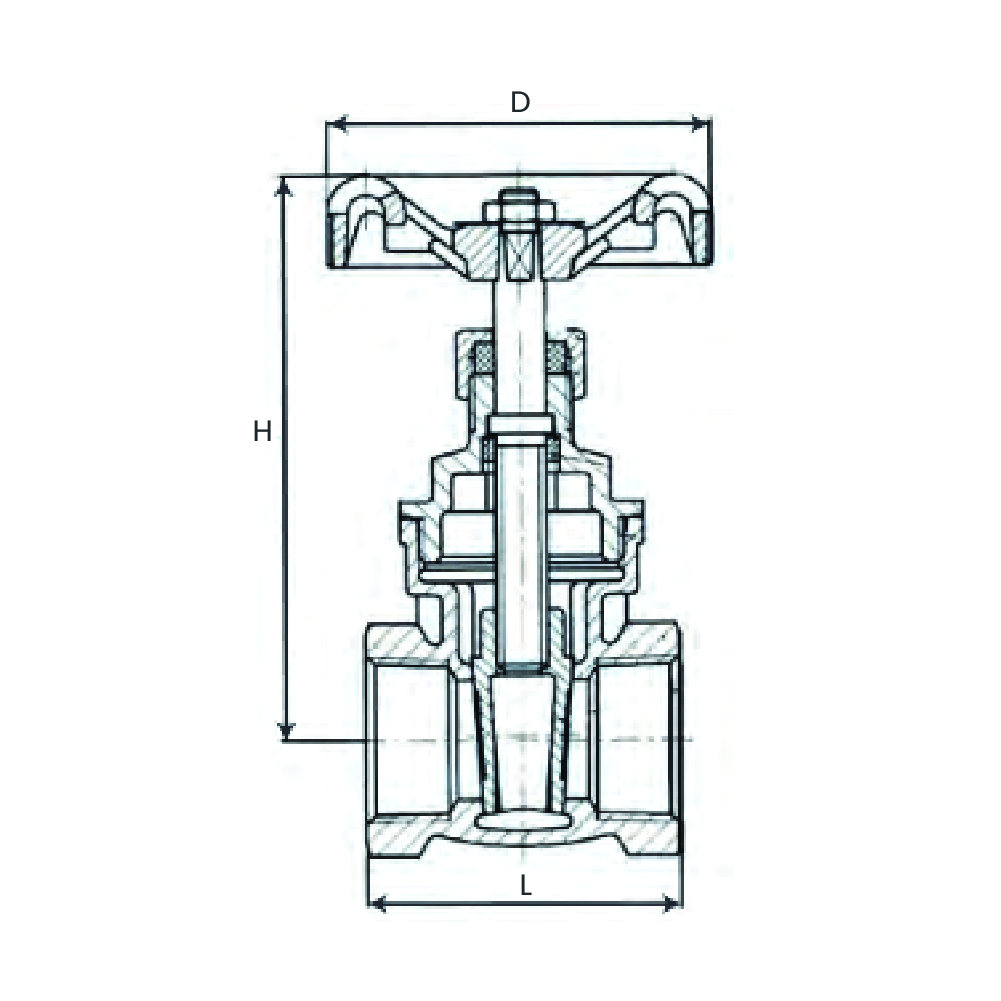

Dimensional Drawings
