Gate Valves

Features & Benefits

• Brass body that resists dezincification
• A non-rising stem and an inside screw pattern

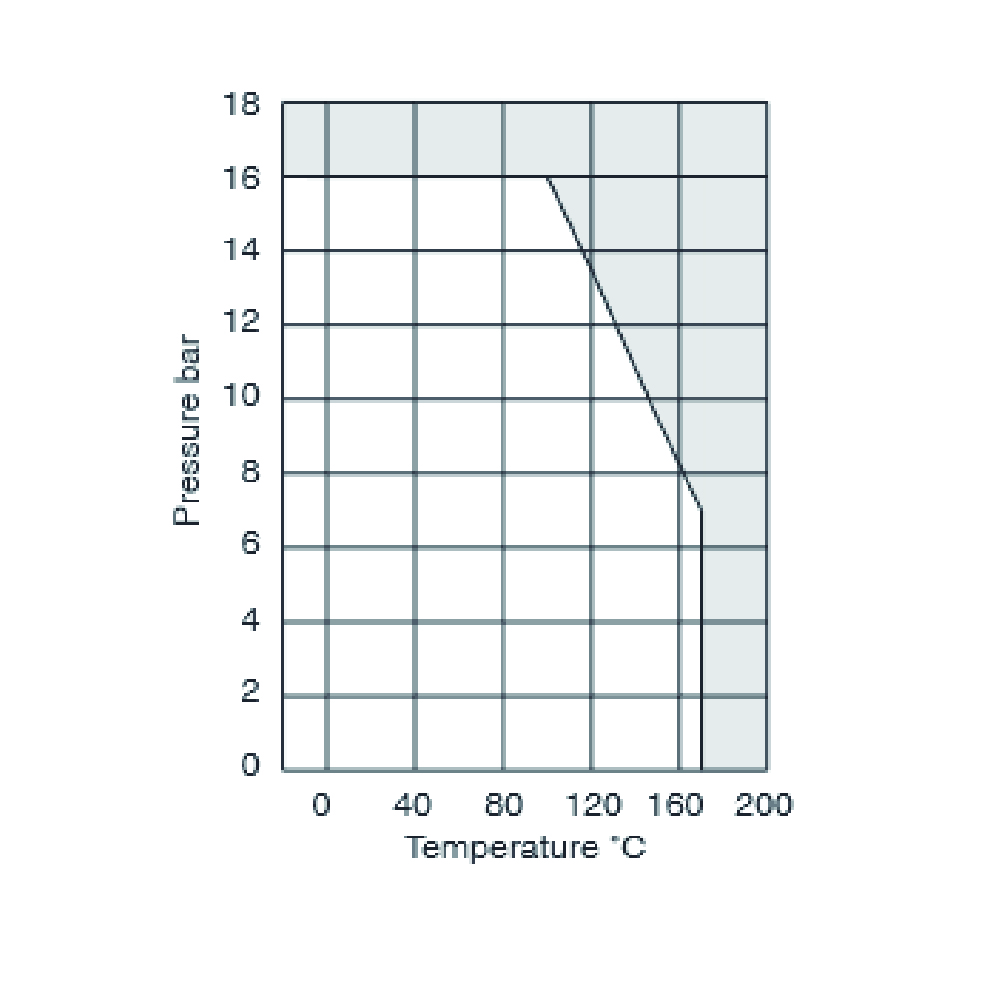

Pressure/Temperature Rating

• 16 Bar from -10°C to 100°C
• 7 Bar at 170°C

Specifications

• Bonnet with threads
• Wedge made of a single piece
• On request, NPT threading is available.
• Designed to BS/EN 12288:2010 Series B formerly BS 5154
• Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21

Test Pressure

• Shell: 24 bar
• Seat: 17.6 bar

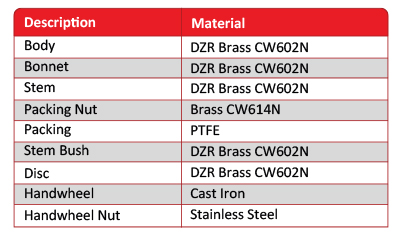

Material Specification

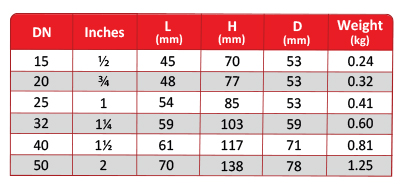

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

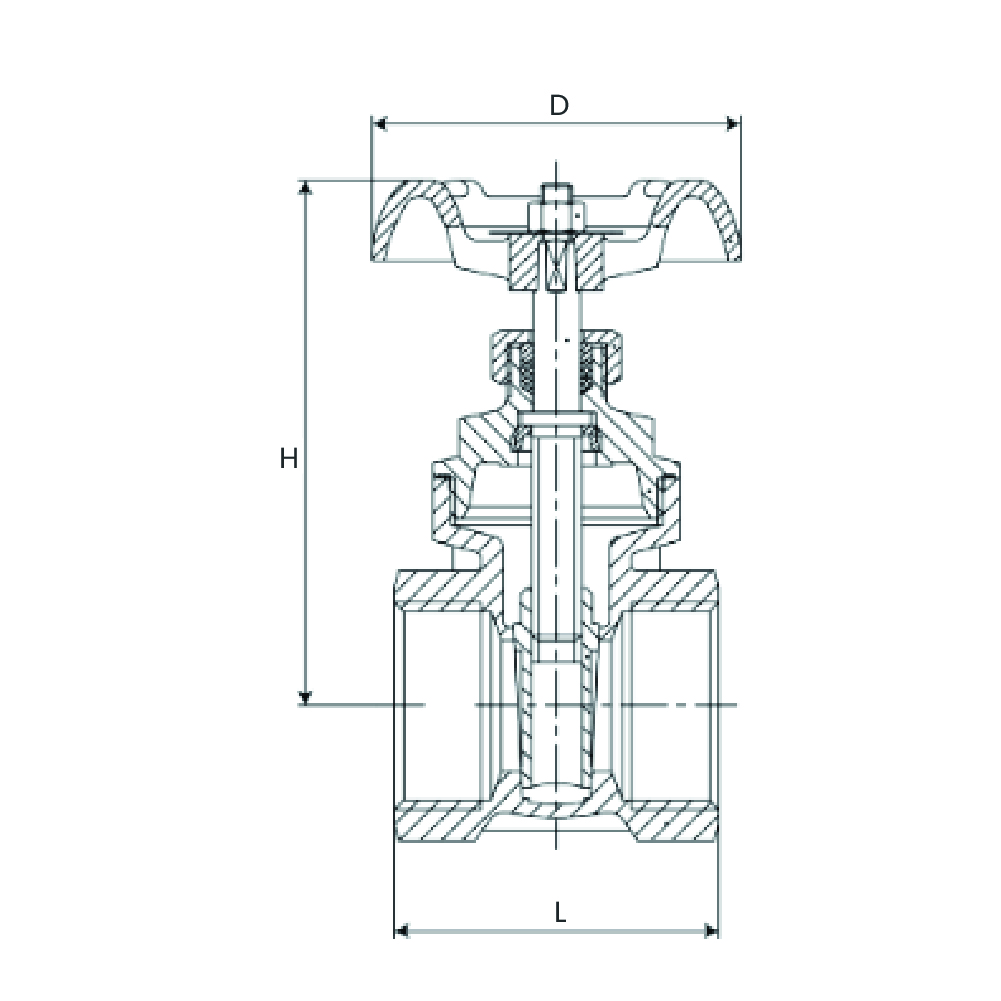

Dimensional Drawings
