Gate Valves

Gate valve: Lock-shield PN20

Features & Benefits
  • Top quality bronze body
  • Non-rising stem with screw pattern
  • Compact design

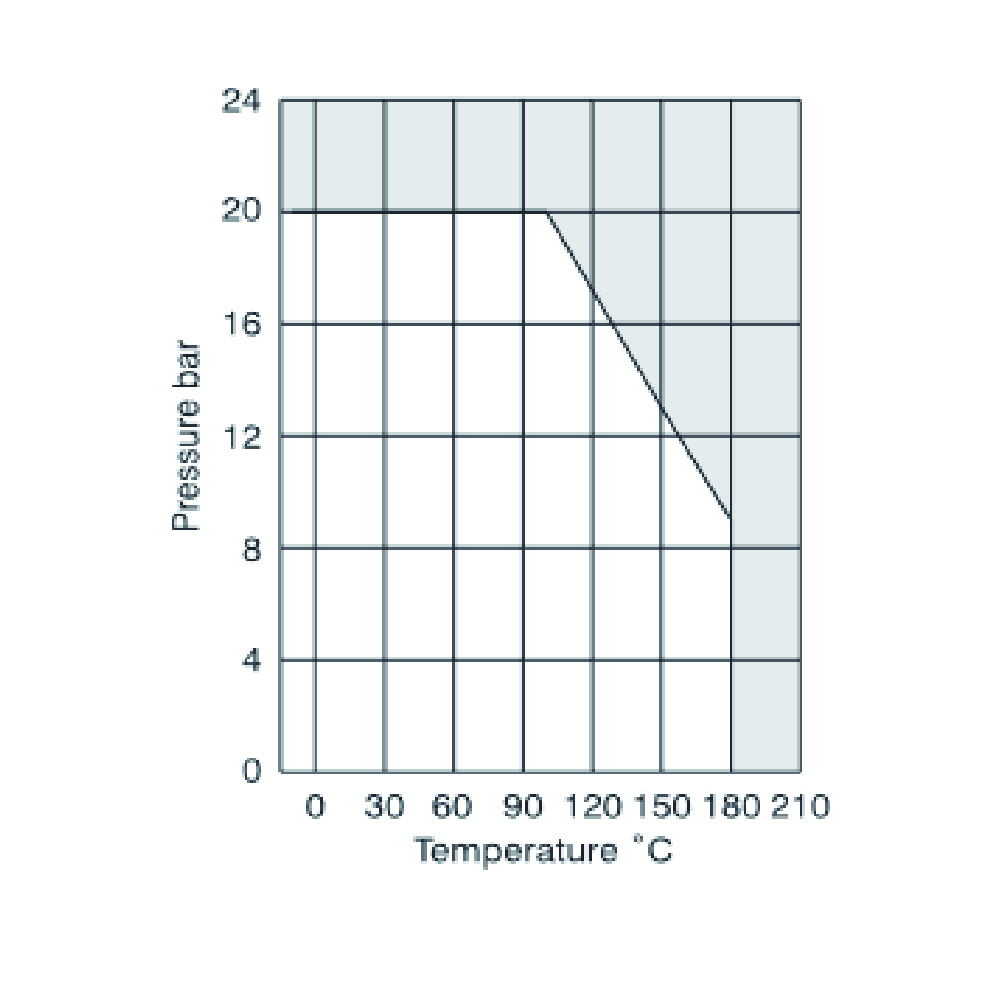

Pressure/Temperature Rating
  • 20 Bar from -10°C to 100°C
  • 9 Bar at 180°C
Specifications
  • Inside screw pattern with non-rising stem
  • Threaded bonnet
  • One-piece wedge
  • NPT threading available on request
  • Designed to BS/EN 12288:2010 Series B formerly BS 5154
  • Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
Test Pressure
  • Shell: 30 bar
  • Seat: 22 bar

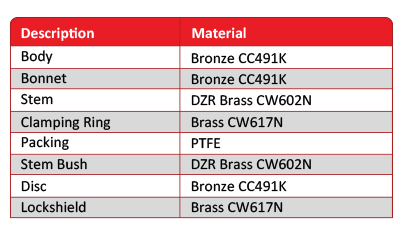

Material Specification

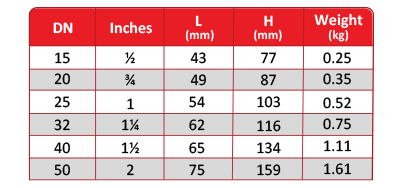

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

Dimensional Drawings
