Gate Valves

Gate Valve – Non – rising stem PN16

Features & Benefits
  • Cast iron body with flanged ends
  • Inside screw pattern with non-rising stem
  • Bronze trim

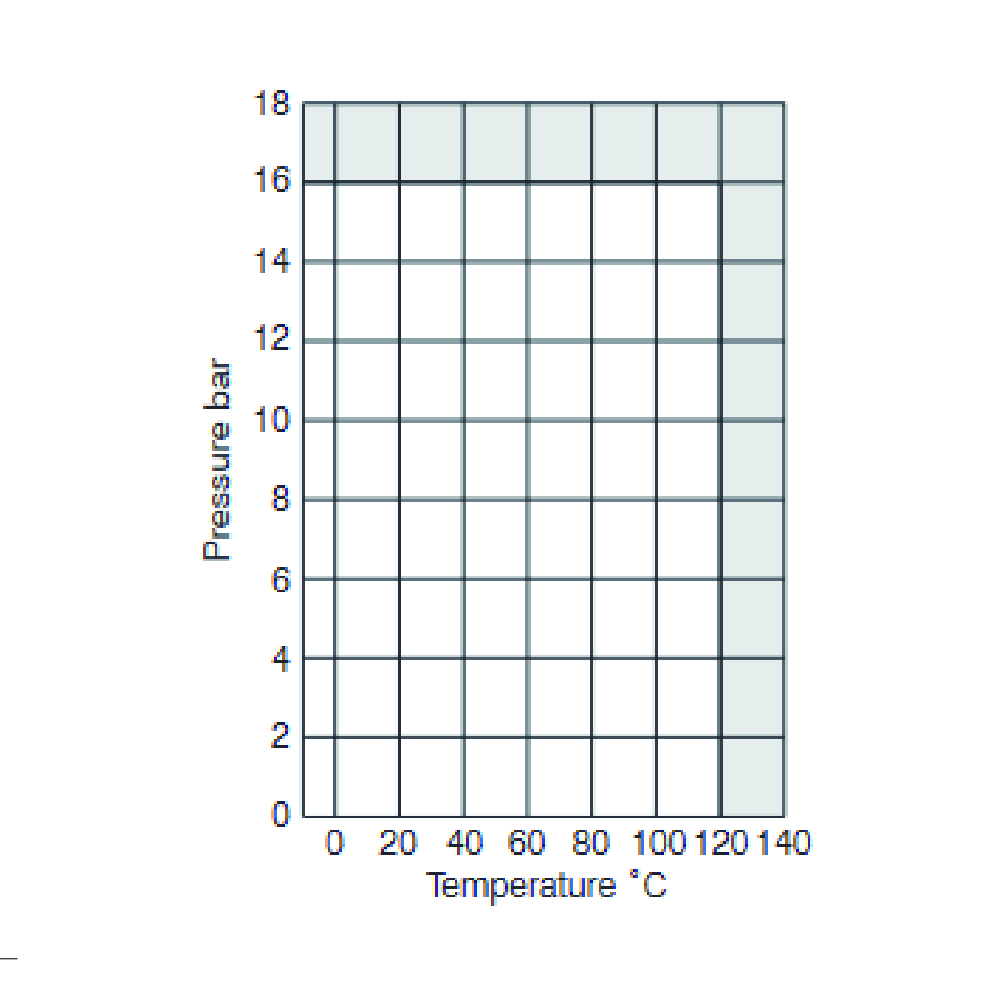

Pressure/Temperature Rating
  • 16 Bar from -10°C to 120°C
Specifications
  • Designed to BS/EN 1171 formerly BS 5150
  • Inside screw
  • Non-rising stem
  • Bolted trim
  • Face to face dimensions to BS EN 558-1
  • Flanged to BS/EN 1092-2 PN16 formerly BS 4504
  • ANSI flange drilling available on request
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

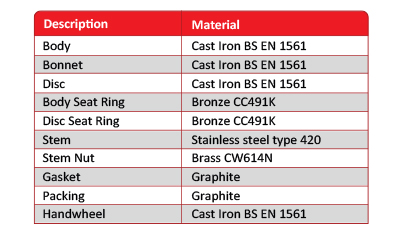

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

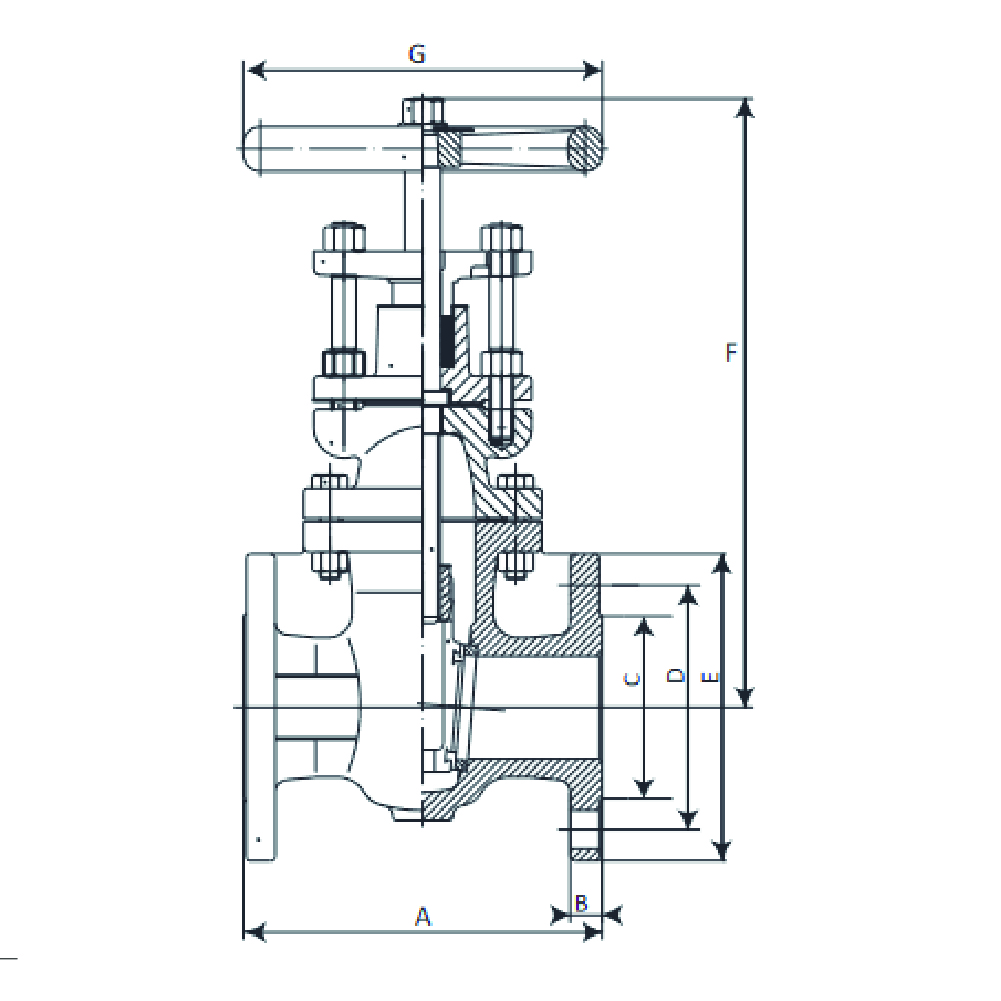

Dimensional Drawings
