Features & Benefits

• Minimizes transmission of vibration and sound
• Absorbs expansion, contraction and misalignment within allowable movements

Pressure/Temperature Rating

• 16 bar from -10° to 115°C

Specifications

• Precision moulded of synthetic rubber reinforced with nylon cord
• Carbon steel floating flanges
• ANSI flanges available on request
• Flanged to BS/EN 1092-1 PN16 formerly BS 4504
• Available with control rods

Test Pressure

• Shell: 24 bar

Material Specification

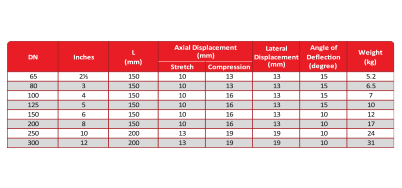

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

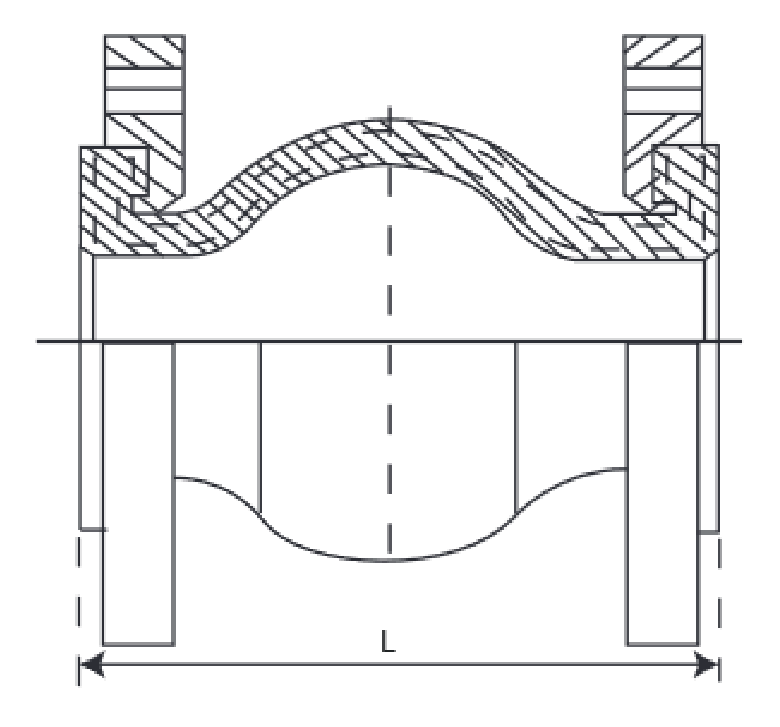

Dimensional Drawings
