Accessories

Features & Benefits

• Minimizes transmission of vibration and sound
• Absorbs expansion, contraction and misalignment within

Pressure/Temperature Rating

• 16 bar from -10° to 115°C

Specifications

• Precision moulded of synthetic rubber reinforced with nylon cord
• Electro galvanized malleable iron ends
• NPT threading available on request
• Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
• Available with limit wiring

Test Pressure

• Shell: 24 bar

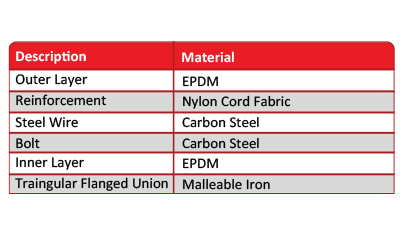

Material Specification

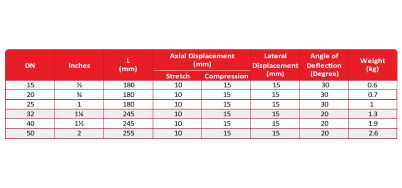

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

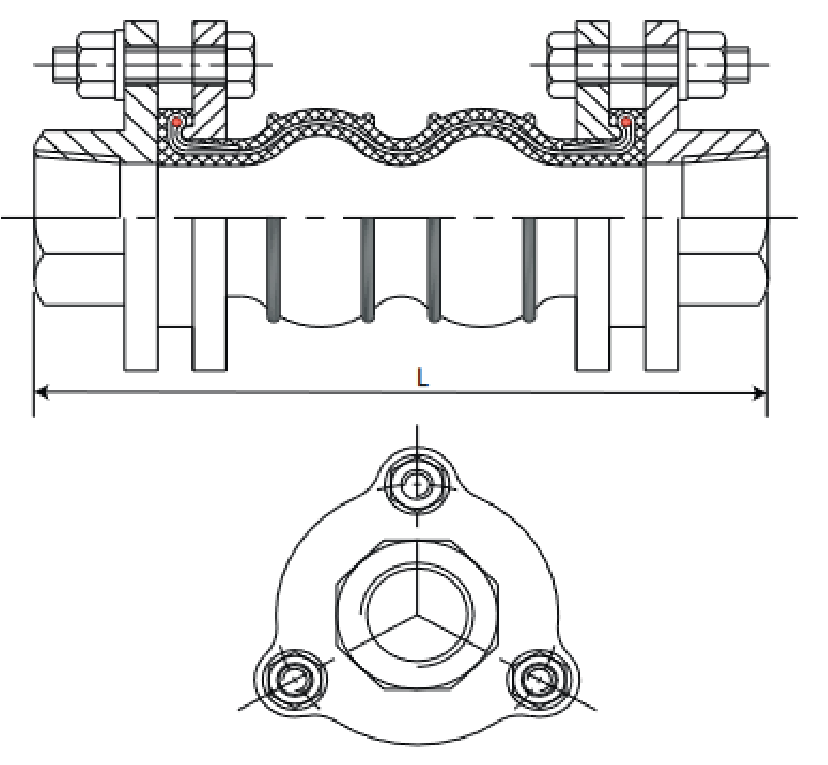

Dimensional Drawings
