Other Valves

Features & Benefits

• Enables system draining without removing pipework
• Dezincification-resistant body

Pressure/Temperature Rating

• 16 Bar from -10°C to 100°C

Specifications

• Designed to BS 2879
• Garden hose end on the outlet
• Plug with square head
• Taper threaded to BS EN 10226-2 (ISO-7) formerly BS 21 NPT threading available on request

Test Pressure

• Shell: 24 bar
• Seat: 17.6 bar

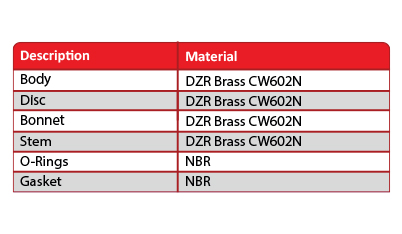

Material Specification

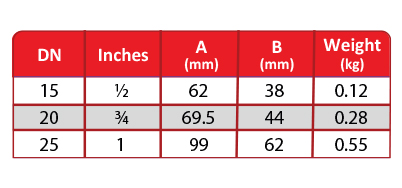

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

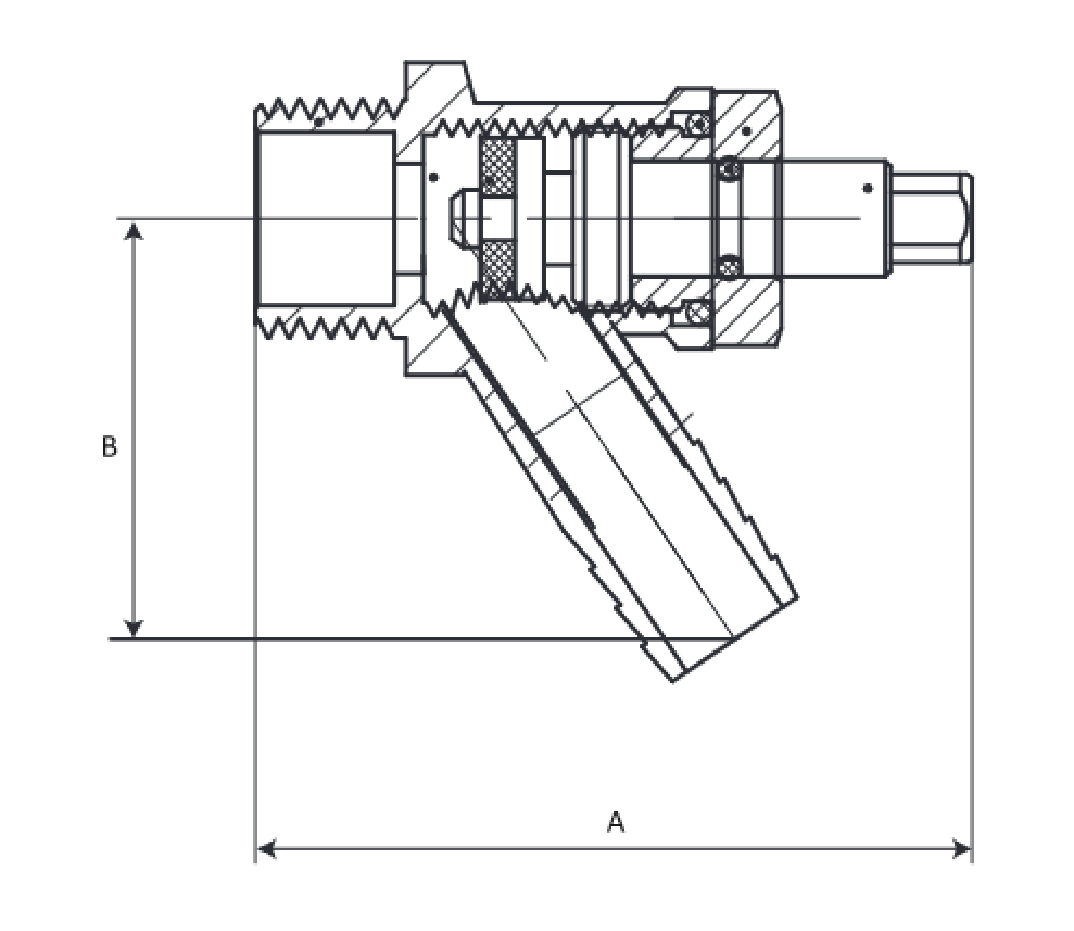

Dimensional Drawings
