Balancing Valves

Double regulating valve: Fixed orifice PN25

Features & Benefits
  • Precise flow regulation
  • Accuracy of ±5% on all settings
  • Integral orifice plate equipped with self-sealing measuring points

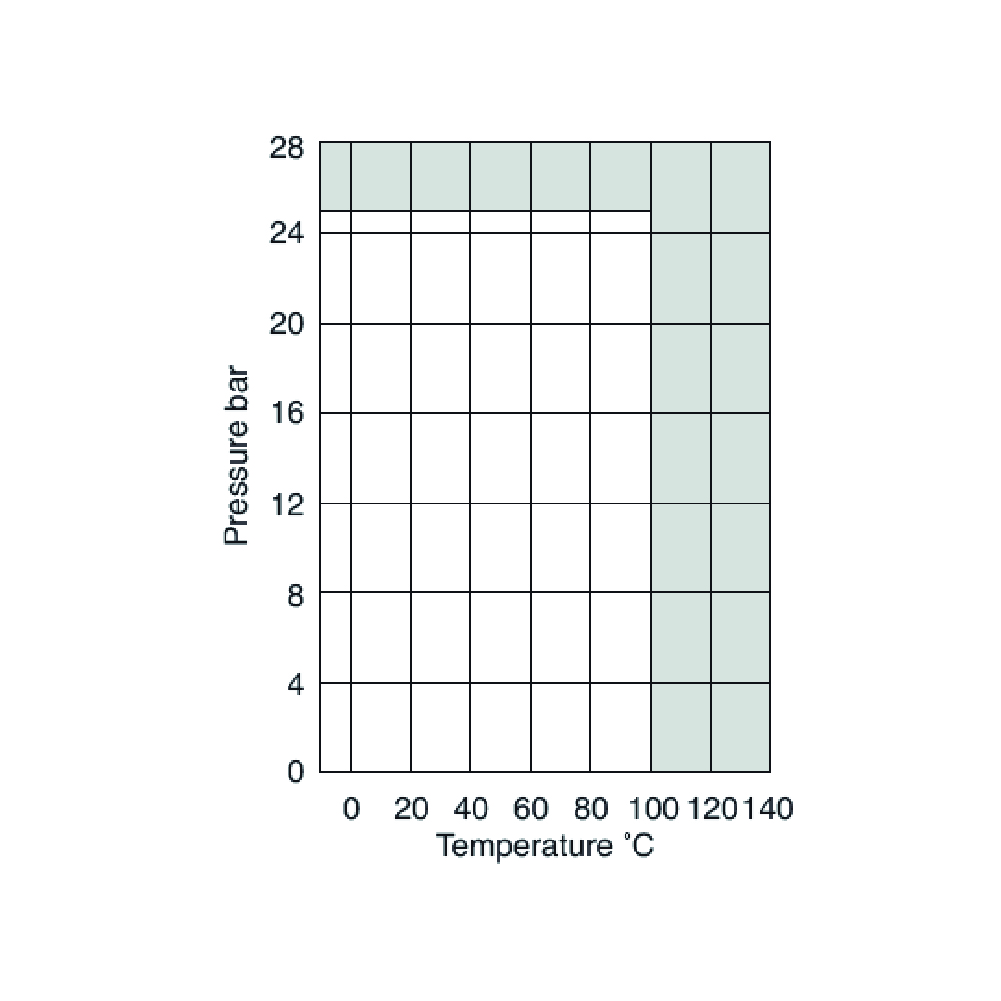

Pressure/Temperature Rating
  • 25 Bar from -10°C to 120°C
Specifications
  • Designed to BS 7350
  • Rising stem, inside screw with non-rising handwheel
  • Handwheel operator with memory stop and numerical indicator
  • Globe type Y pattern with characterised throttling disc
  • Taper threaded to BS EN 10226-2 (ISO-7) formerly BS 21
  • NPT threading available on request
  • Integral orifice plate equipped with self-sealing measuring points.
Test Pressure
  • Shell: 37.5 bar
  • Seat: 27.5 bar

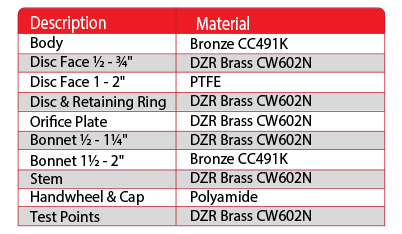

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

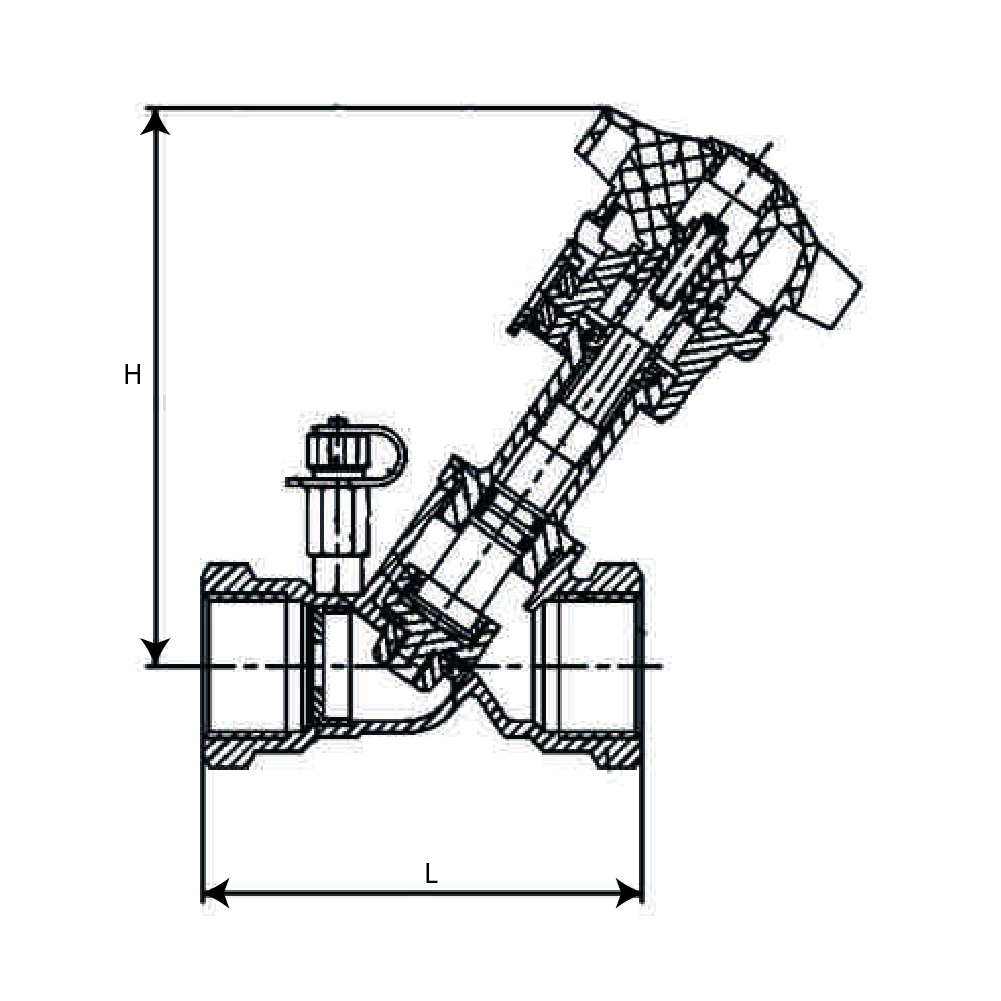

Dimensional Drawings
