Balancing Valves

Double regulating valve: Fixed orifice PN16

Features & Benefits
  • Precise flow regulation
  • Accuracy of ±5% on all settings
  • Integral orifice plate equipped with self-sealing measuring point
Pressure/Temperature Rating
  • 16 Bar from -10°C to 120°C
Specifications
  • Designed to BS 7350
  • Globe type Y pattern
  • Handwheel operator with memory stop and numerical indicator
  • EPDM coated ductile iron disc
  • Rising stem, inside screw with non-rising handwheel
  • Integral orifice plate equipped with self-sealing measuring points (Fig. FLTP)
  • Flanged to BS EN 1092-2 PN16 formerly BS 4504
  • ANSI flange drilling available on request
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

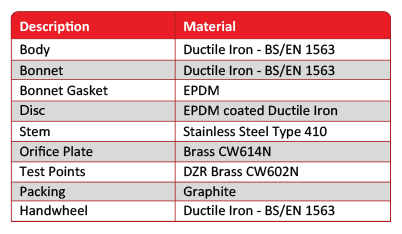

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

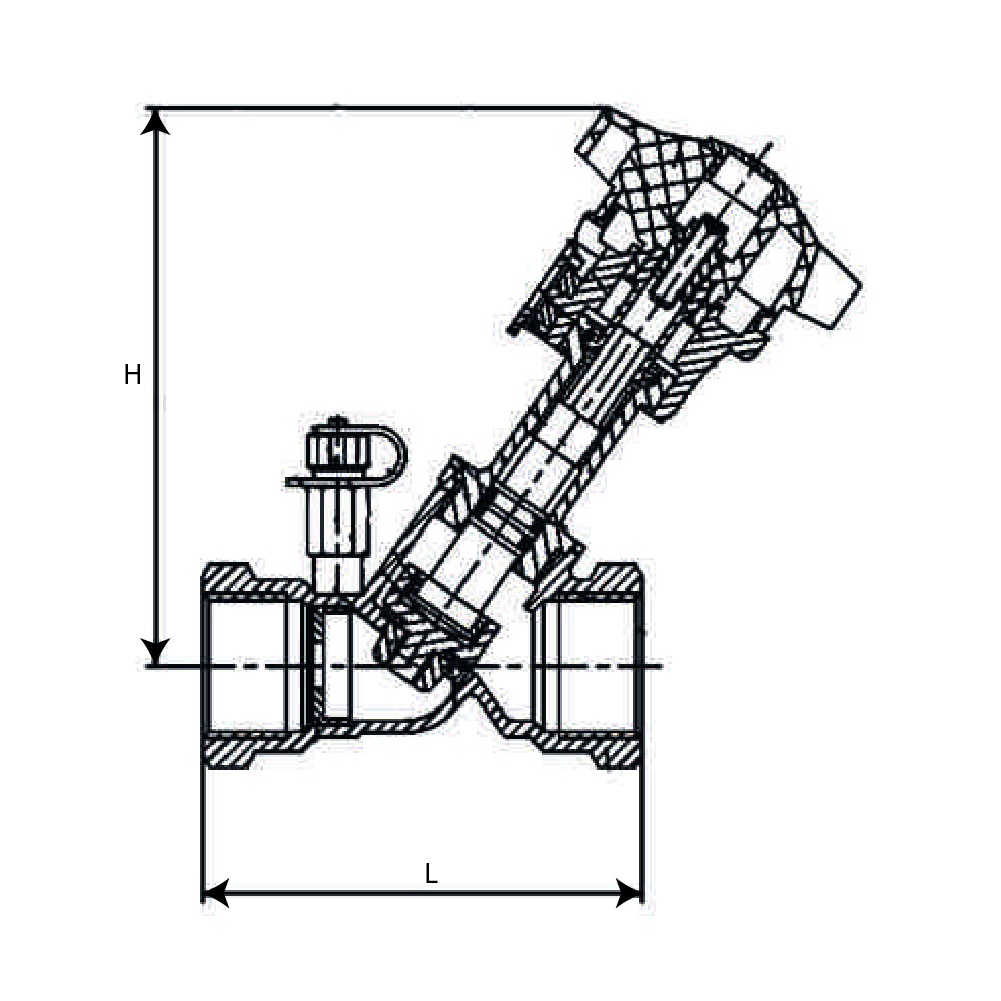

Dimensional Drawings
