Check valve: Swing type PN16

Features & Benefits
  • Horizontal swing pattern
  • Bronze trim

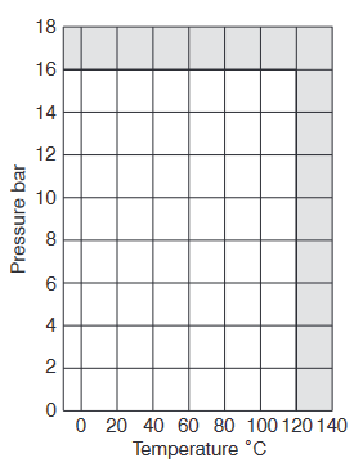

Pressure/Temperature Rating
  • 16 Bar from -10°C to 120°C
Specifications
  • Horizontal swing pattern
  • Bolted bonnet
  • Can be installed in horizontal or vertical, upward flow piping
  • ANSI flange drilling available on request
  • Designed to BS/EN 16767 formerly BS/EN 12334
  • Face-to-face dimensions to BS/EN 558-1 primary series 10 (DN65-400)
  • Flanged to BS/EN 1092-2 PN16 formerly BS 4504
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

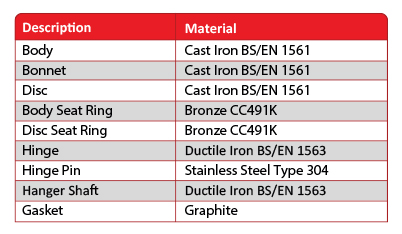

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

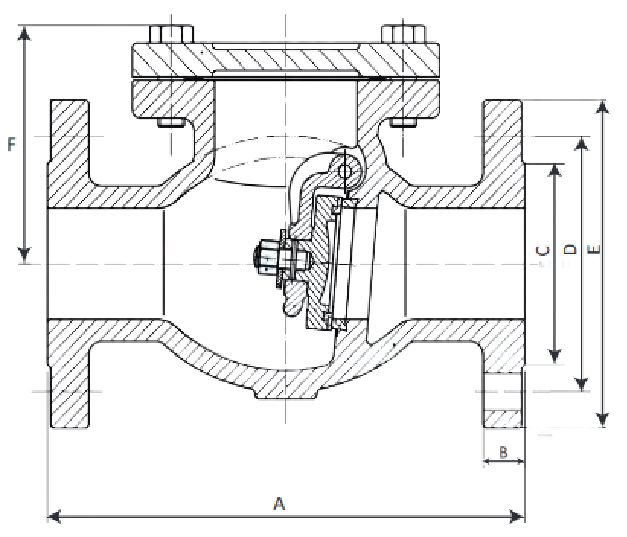

Dimensional Drawings
