Butterfly Valves

Butterfly valve: Double Flanged PN16

Features & Benefits
  • Ductile iron double-flanged body
  • EPDM liner
Pressure/Temperature Rating
  • 16 Bar from -10°C to 120°C
Specifications
  • Top flange conforms to ISO 5211
  • Face-to-face dimensions to BS EN 558-1 primary series 13
  • ANSI flange drilling available on request
  • Fully enclosed gear operator
  • Available with electric actuators
  • Available with gearbox + chain-wheel operators
  • Designed to BS/EN 593
  • Flanged to BS/EN 1092-2 PN16 formerly BS 4504
Test Pressure
  • Shell: 24 bar
  • Seat: 17.6 bar

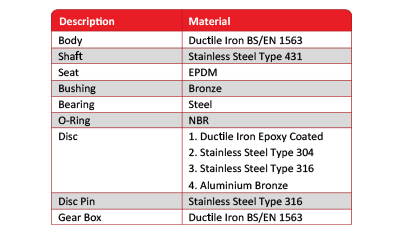

Material Specification

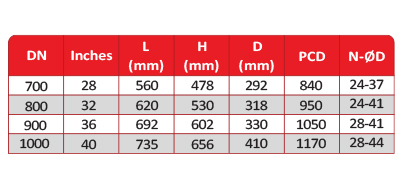

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

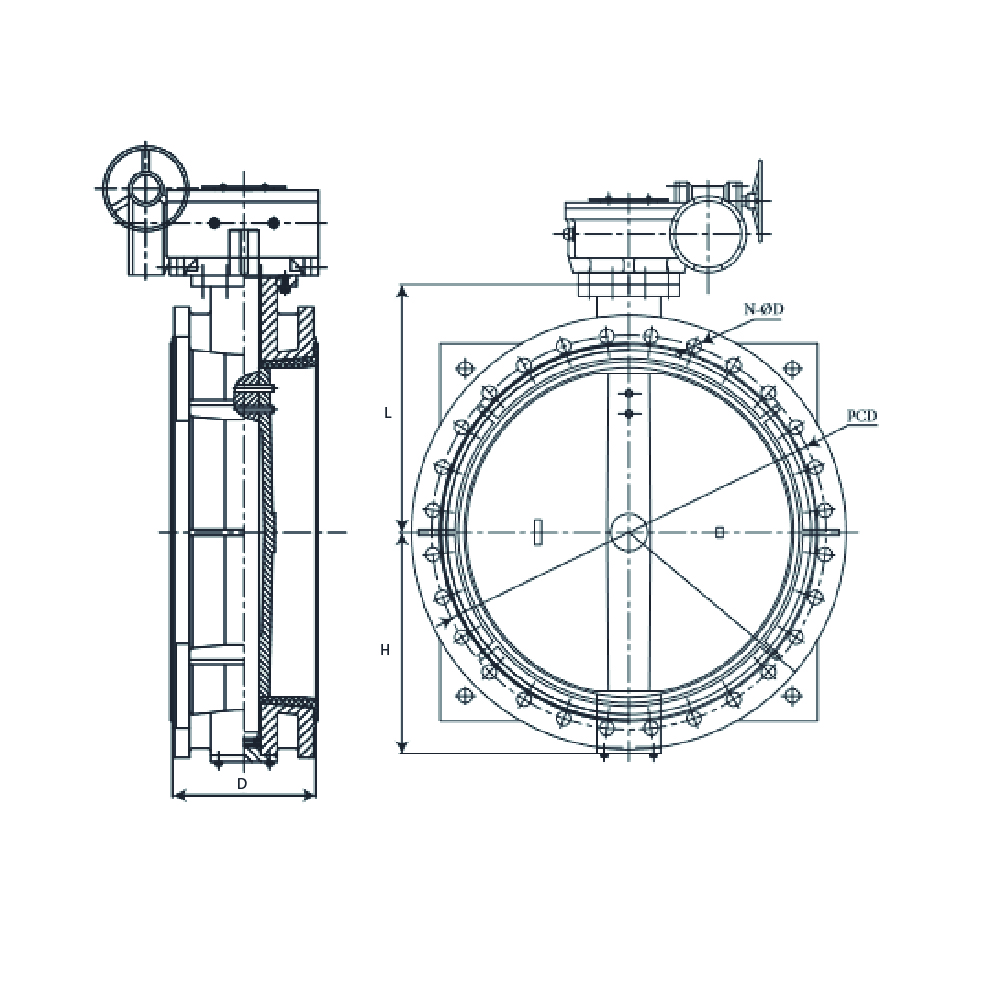

Dimensional Drawings
