Ball Valves

Ball valve: Lever operated PN25

Features & Benefits
  • Bronze body of excellent quality
  • Full bore
  • The lever was activated

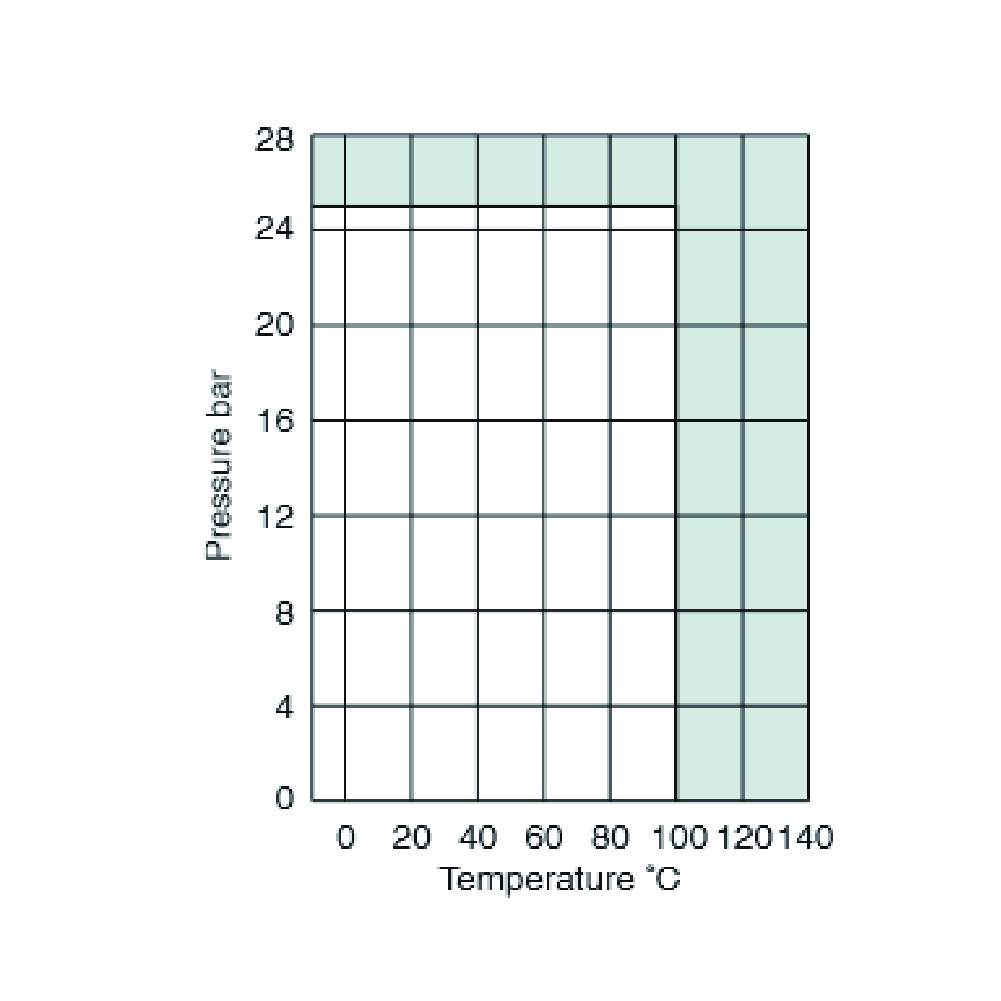

Pressure/Temperature Rating
  • 25 Bar from -10°C to 100°C
Specifications
  • Blow-out proof stem
  • Quarter turn lever operated
  • Full bore chrome prated ball
  • Two piece body
  • PTFE seats and stem seals
  • Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
  • NPT threading available on request
Test Pressure
  • Shell: 37.5 bar
  • Seat: 27.5 bar

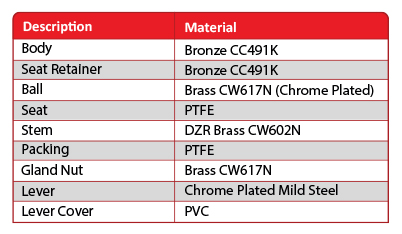

Material Specification
Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

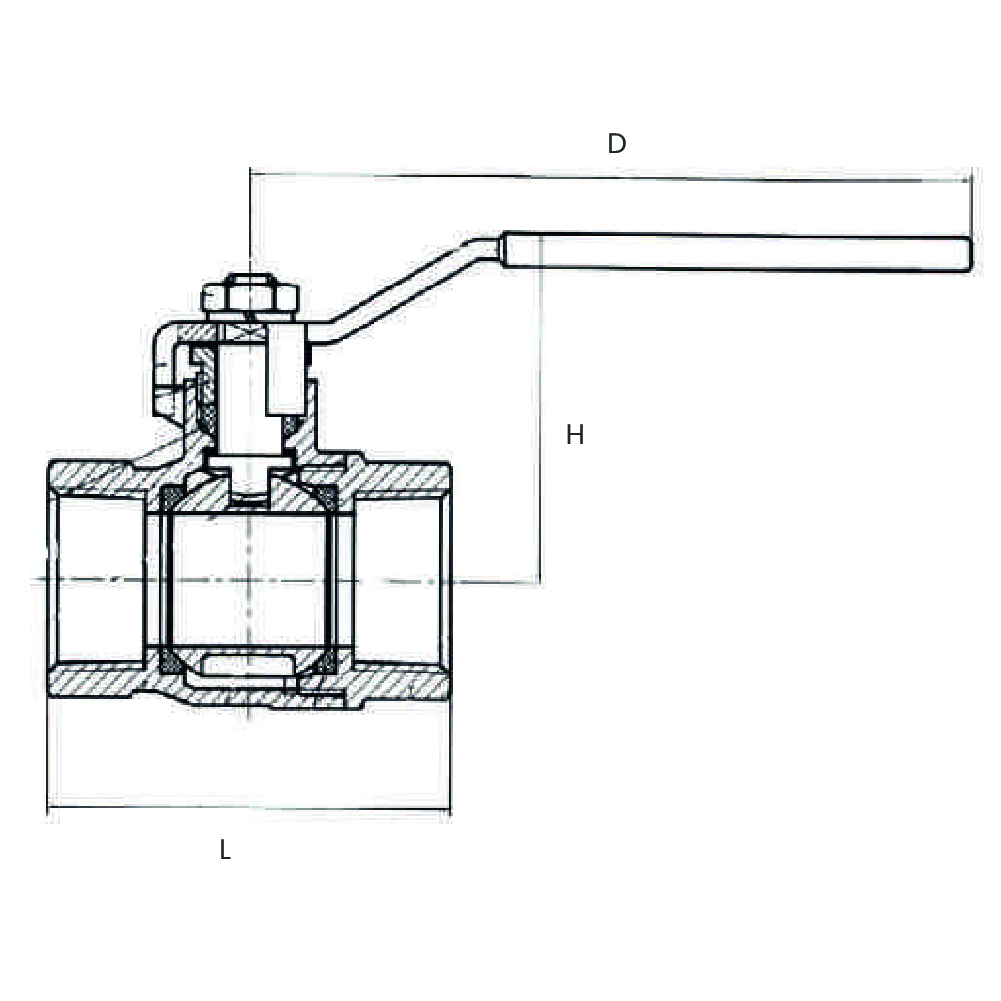

Dimensional Drawings
