Ball Valves

Features & Benefits

• Bronze body of excellent quality
• Full bore
• stem with a longer length
• The lever was activated

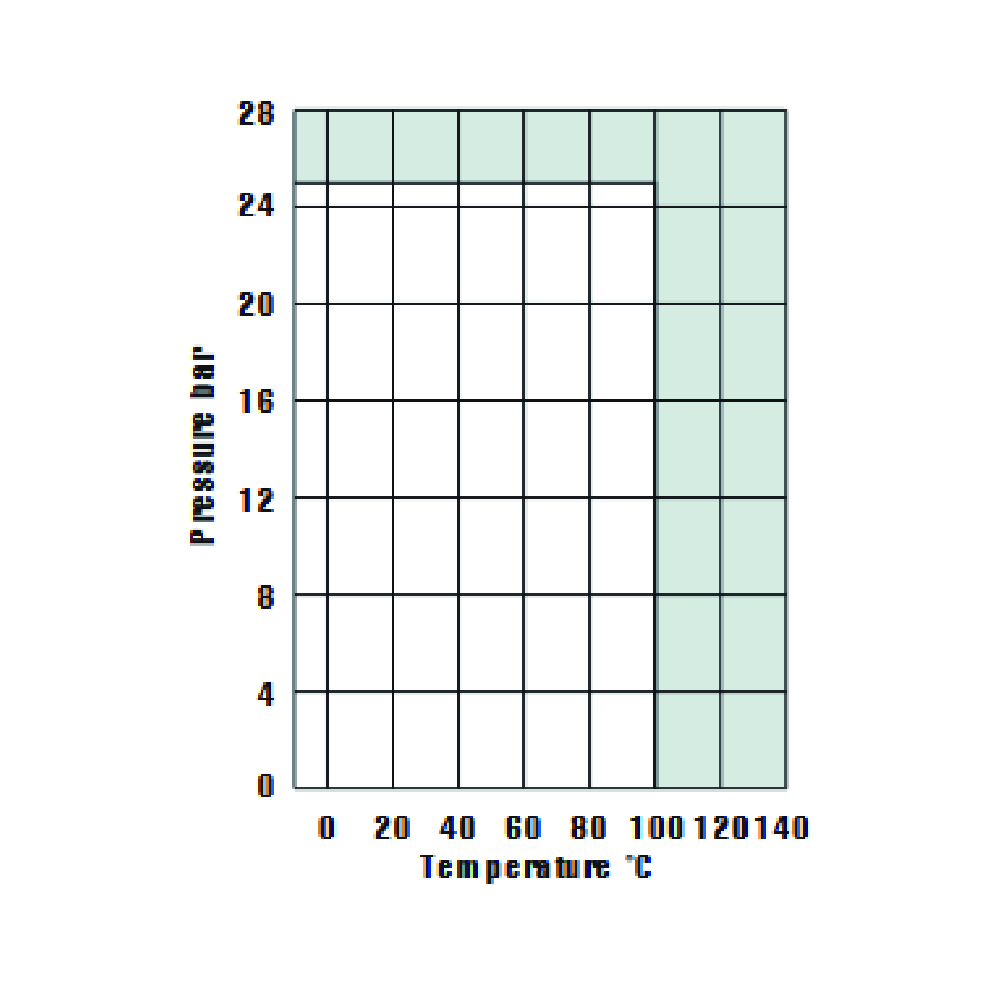

Pressure/Temperature Rating

• 25 Bar from -10°C to 100°C

Specifications

• Blow-out proof stem
• Extended stem
• Quarter turn, lever operated
• Full bore chrome plated ball
• Two piece body
• PTFE seats
• Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
• NPT threading available on request

Test Pressure

• Shell: 37.5 bar
• Seat: 27.5 bar

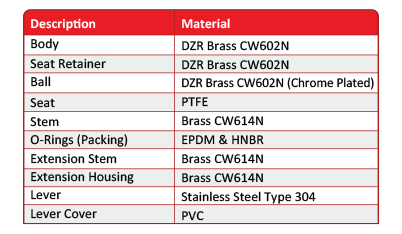

Material Specification

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

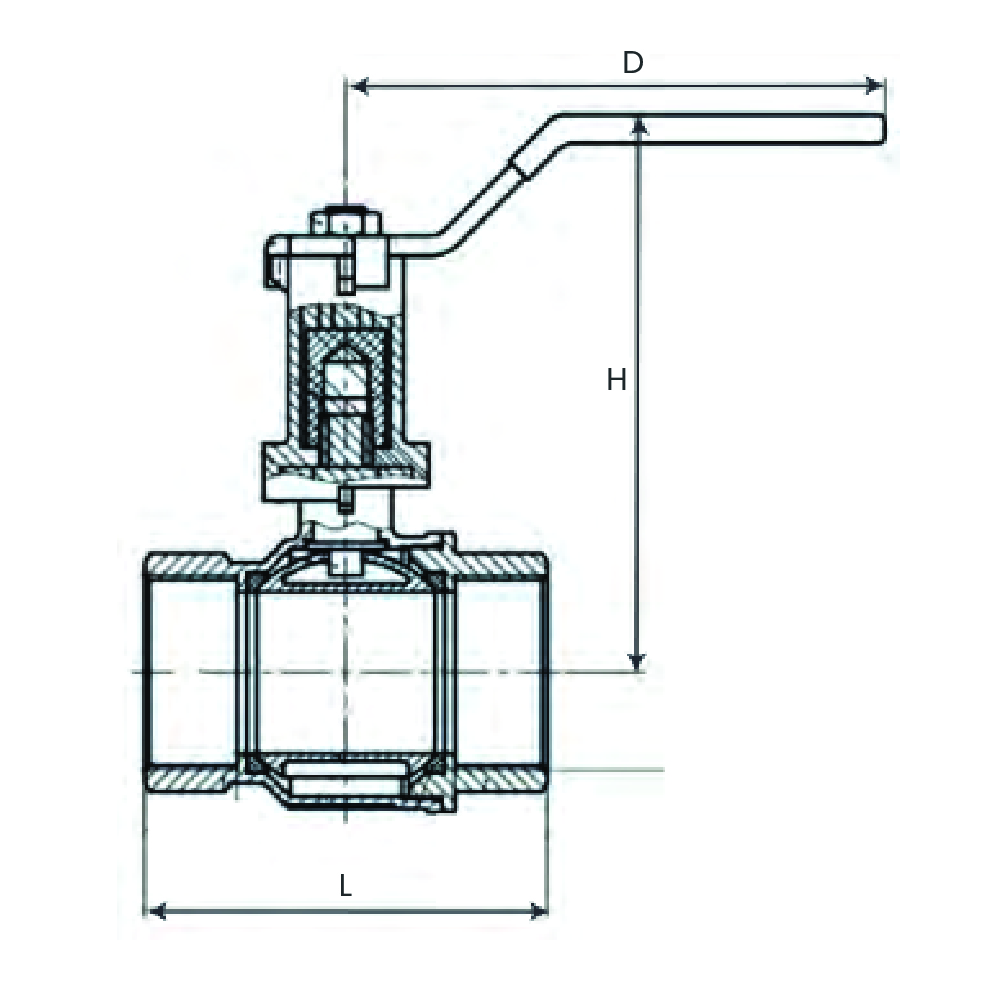

Dimensional Drawings
