Other Valves

Automatic Air Vent PN16

Features & Benefits
  • Automatically vents air trapped in the system
  • Solid brass construction with long life polypropylene float
  • With detachable check valve
Pressure/Temperature Rating
  • 16 Bar from -10°C to 85°C
Specifications
  • Brass body and cover
  • Polypropylene float
  • NBR seals
  • Threaded cap
  • Taper threaded to BS/EN 10226-2 (ISO-7) formerly BS 21
  • NPT threading available on request
Test Pressure
  • Shell: 24 bar

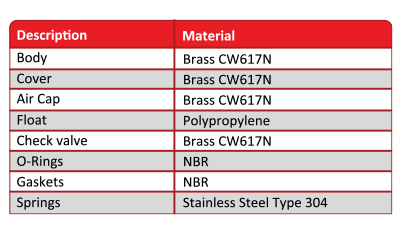

Material Specification

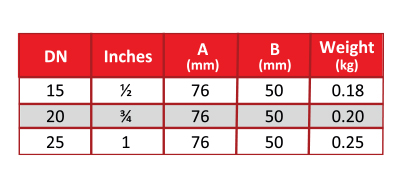

Dimensions and Weight

All dimensions are nominal (indicative).Actual dimensions may vary.

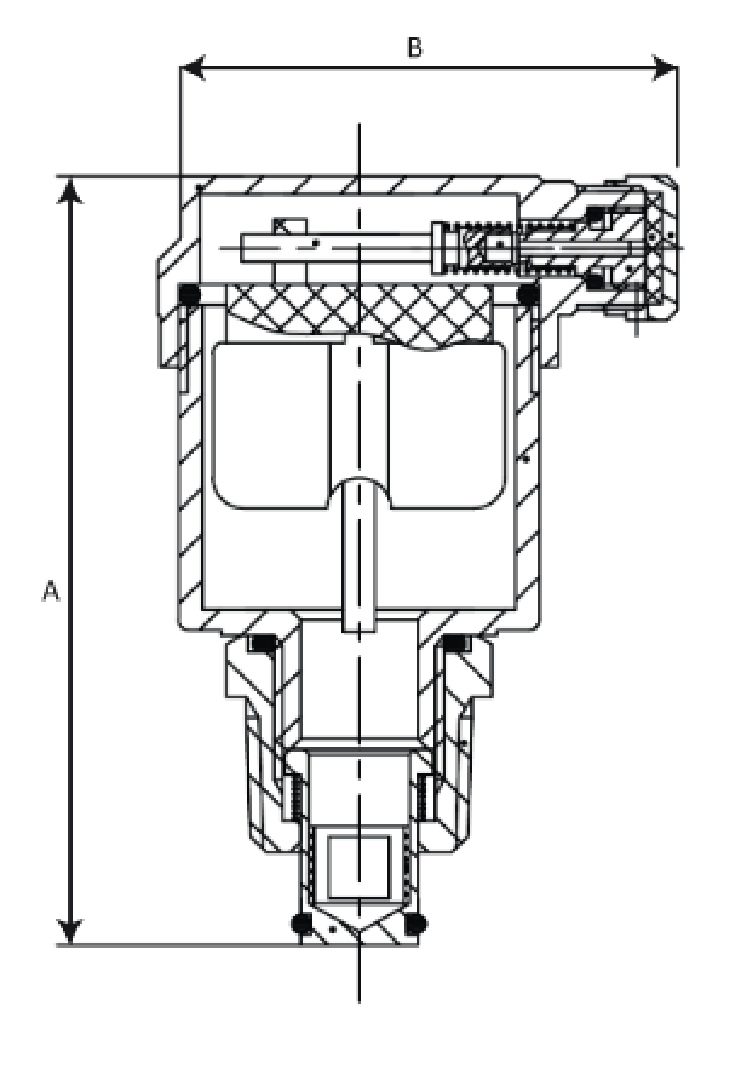

Dimensional Drawings
