Angle Valve: Chrome Plated PN16
Features & Benefits
- 16 Bar from -10°C to 100°C
Pressure/Temperature Rating
- 16 Bar from -10°C to 100°C
Specifications
- Chrome Plated brass body
- Size 1/2"
- Male threaded 1/2" BSPP
Test Pressure
- Shell: 24 bar
- Seat: 17.6 bar

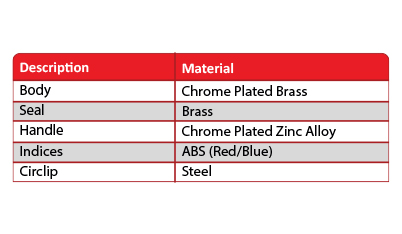

Material Specification

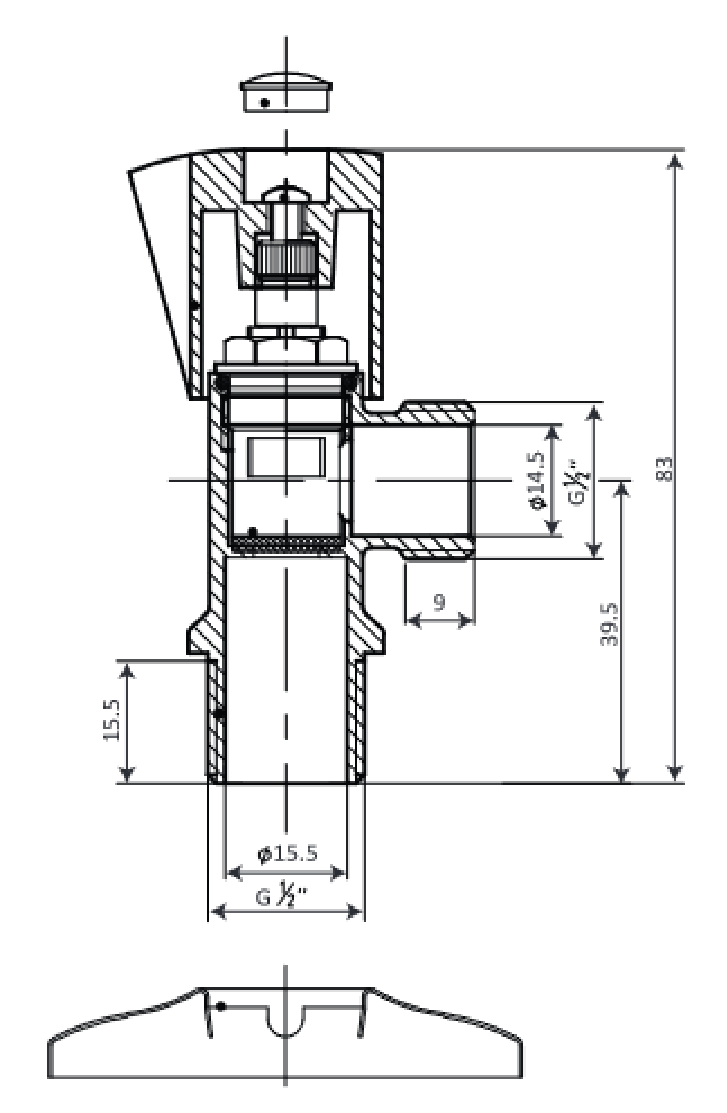

Dimensional Drawings
